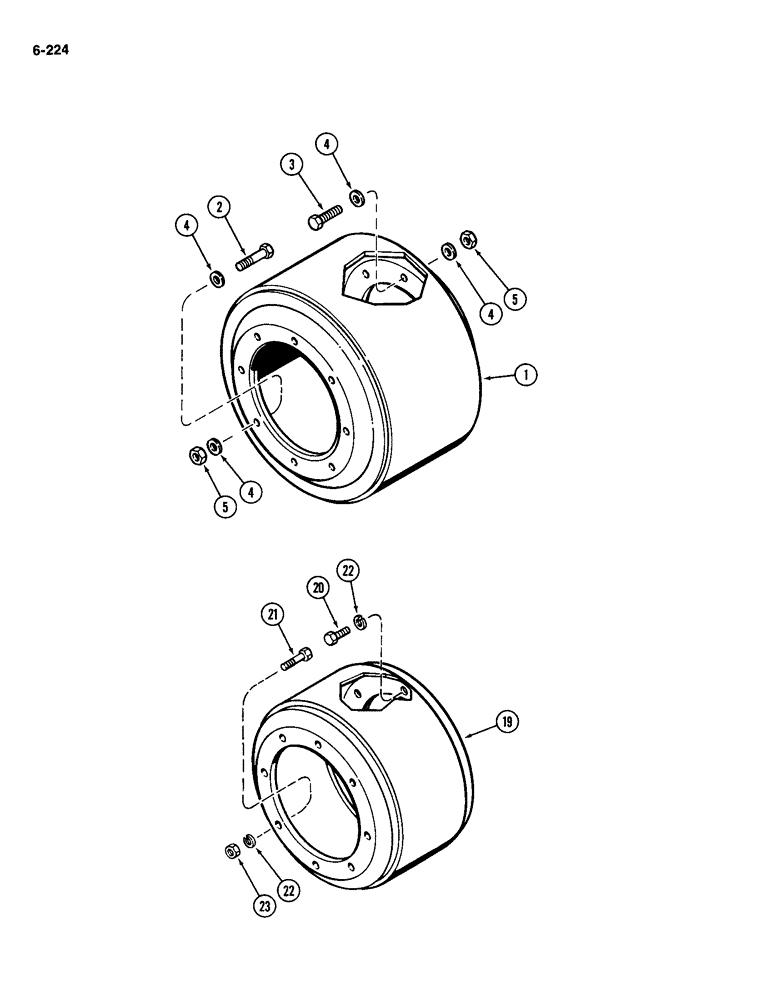

Запчасти Case IH 2094 (6-224) - OUTER DUAL WHEEL SPACER (06) - POWER TRAIN

1

A149059

BUSHING

SPACER - outer dual wheel

2шт.

2

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex, 3/4 NC x 3-1/4 inch (Grade 8) (with cast wheel)

16шт.

3

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch (Grade 8) (with cast wheel)

16шт.

4

D31328

WASHER

- 1-5/8 inch (41 mm)

32шт.

5

129-108

NUT,3/4"-10, G5

- hex, 3/4 inch NC (Grade 8)

32шт.

19

A145968

SPACER

- dual wheel

2шт.

20

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch

16шт.

21

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch (Grade 8)

16шт.

22

D31328

WASHER

- lock

32шт.

23

129-183

NUT,5/8"-11, G8

16шт.
