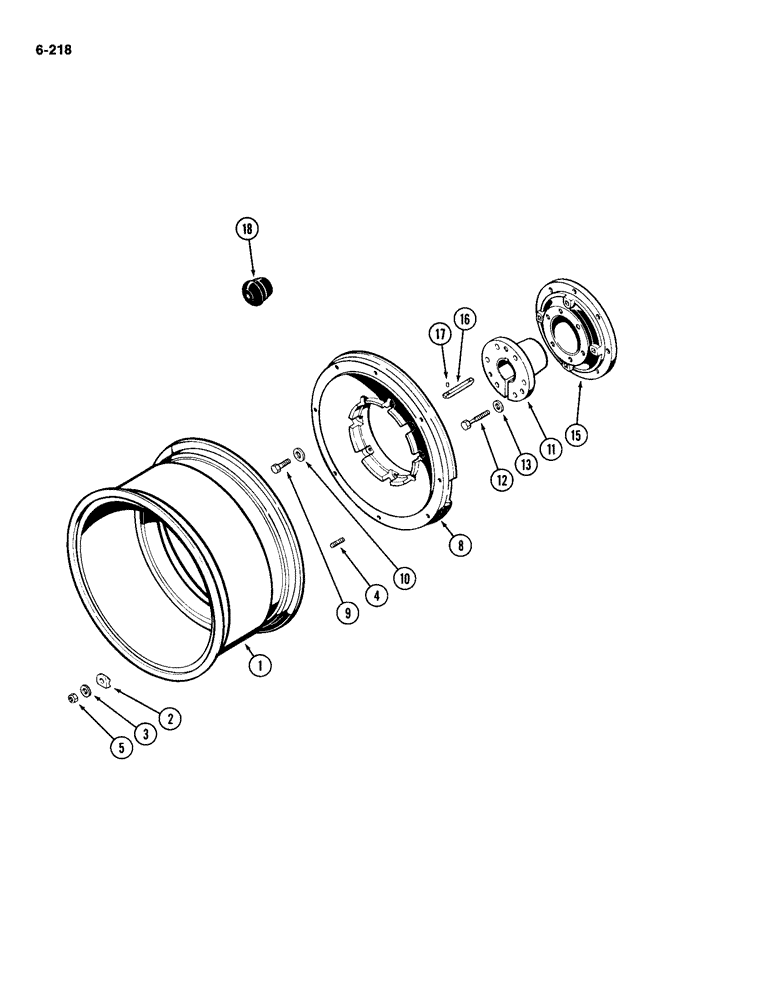

Запчасти Case IH 2094 (6-218) - CAST DUAL REAR WHEELS, WITH 34 INCH (864 MM) RIM (06) - POWER TRAIN

1

A33460

RIM

- wheel (for 23.1 x 34 tire)

2шт.

2

A166501

CLAMP

-, Serial Range: rim-wheel

16шт.

3

A64303

WASHER

- hardened

16шт.

4

A60047

STUD

-, Serial Range: rim-wheel

16шт.

5

A27183

NUT

-, Serial Range: rim-wheel

16шт.

8

A57686

WHEEL

- cast

2шт.

9

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

16шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

11

A59792

HUB

BUSHING - wheel hub

2шт.

12

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

2шт.

13

D31328

WASHER

- 1-5/8 inch (41 mm)

12шт.

15

A59791

HUB

- cast wheel

2шт.

16

A34890

BUCKET TOOTH KEY

KEY - axle shaft

2шт.

17

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

18

A145052

PLUG

- rim (Tubeless tire only)

2шт.
