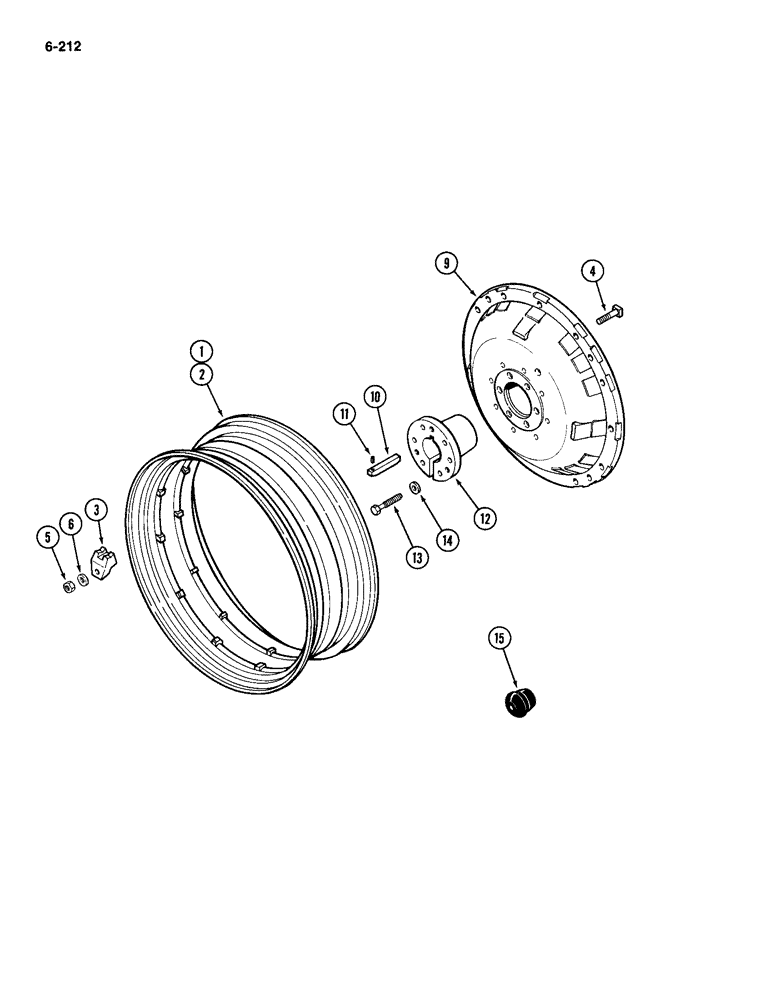

Запчасти Case IH 2094 (6-212) - REAR WHEELS, WITH 34 INCH (864 MM) RIMS (06) - POWER TRAIN

1

A57045

RIM

- wheel (for 18.4 x 34 tire)

2шт.

2

A63810

RIM

- wheel (for 20.8 x 34 tire)

2шт.

3

A57654

CLAMP

-, Serial Range: rim-wheel

24шт.

4

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp, square head, 3/4 NC x 3-1/2 inch

24шт.

5

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- heavy hex, 3/4 inch NC

24шт.

6

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

24шт.

9

A149776

WHEEL

- rear

2шт.

10

A34890

BUCKET TOOTH KEY

KEY - axle shaft, 6 inch long (152 mm)

2шт.

11

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

12

A145896

BUSHING

- wheel hub

2шт.

13

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to wheel hub, 3/4 inch NC

12шт.

14

D31328

WASHER

- bolt, 1-5/8 inch (417 mm)

12шт.

15

A145052

PLUG

- valve opening in rim

1шт.
