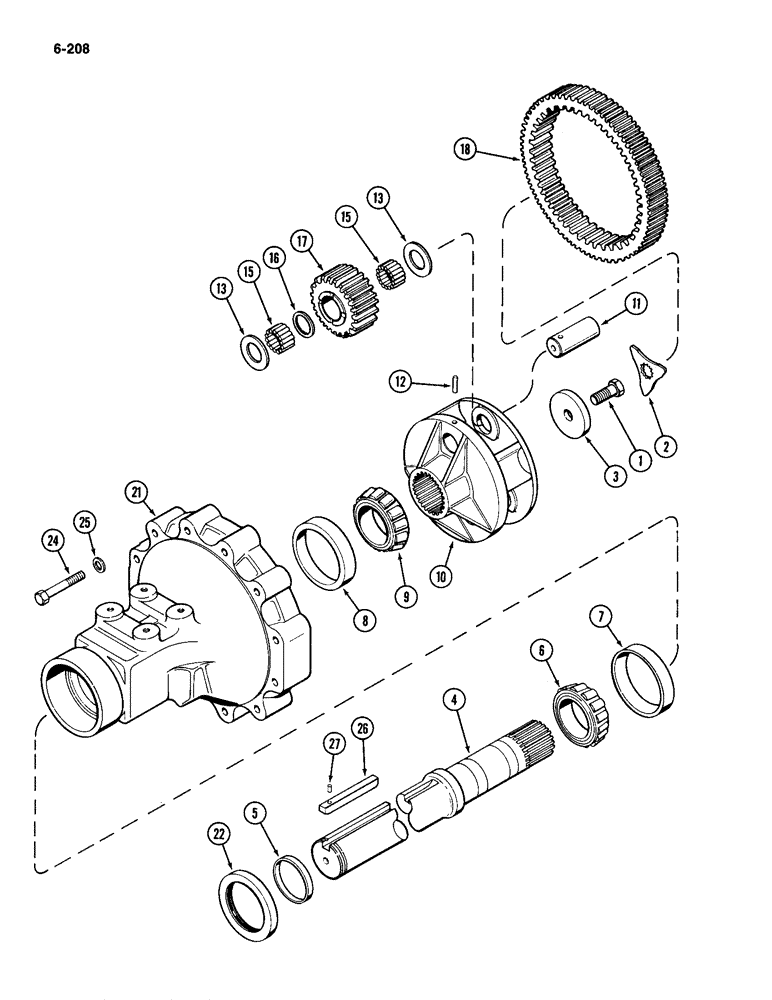

Запчасти Case IH 2094 (6-208) - REAR AXLE, HOUSING AND PLANETARY GEARS, 120 INCH LONG AXLE (3048 MM) (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- hex, 7/8 NC x 2-1/4 inch (Grade 8)

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining rear axle

2шт.

4

A155225

SHAFT

- rear axle, with Identification Groove, 44-9/16 inch (1132 mm), Includes: Ref. 5

2шт.

5

A67368

RING

- wear, outer oil seal

1шт.

6

A34340

ROLLER BEARING

CONE -bearing, outer, 3-11/32 inch ID (85 mm)

2шт.

7

A34343

BEARING CUP

CUP - bearing, outer, 5-57/64 inch O.D. (150 mm)

2шт.

8

A50324

BEARING CUP

CUP - bearing, inner, 5-1/4 inch O.D. (133 mm)

2шт.

9

PA34339

NUT

CONE - bearing, inner 3-1/4 inch ID (83 mm)

2шт.

10

A148732

CARRIER

- planetary gear

2шт.

11

A151449

PIN,40.35mm OD x 115.82mm L

- planetary gear, with 3/8 inch hole (10 mm)

6шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

13

A63228

WASHER

- planetary pin roller, 3 inch (76 mm)

12шт.

15

A46423

KIT

BEARING KIT - roller, planetary gear (38 Needles Per kit)

4шт.

16

A63227

SPACER

- roller bearing separator, 2-13/64 inch (56 mm)

6шт.

17

A168174

GEAR

- planetary, rear axle

6шт.

18

A140811

GEAR

- planetary ring

2шт.

21

A154877

HOUSING

- rear axle (Casting No. A154877)

2шт.

22

A154957

OIL SEAL

- oil, rear axle

2шт.

24

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch (Grade 8)

24шт.

25

A64303

WASHER

- 1-1/16 inch (27 mm)

24шт.

26

A34890

BUCKET TOOTH KEY

KEY -, Serial Range: wheel-shaft

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
