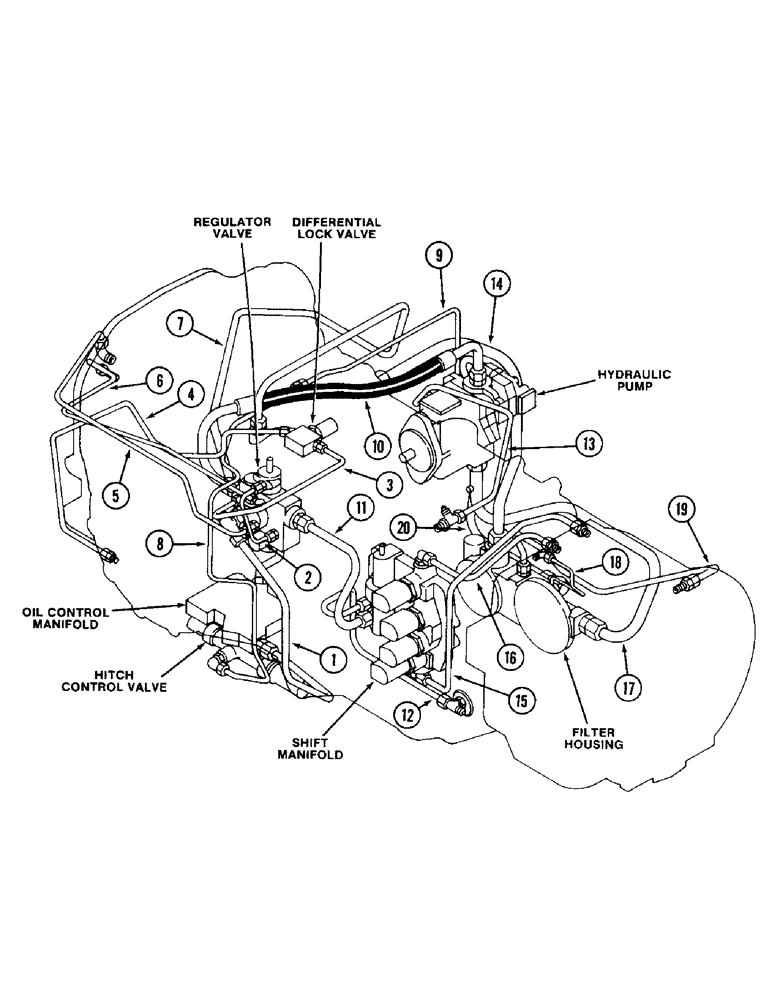

Запчасти Case IH 2094 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Regulator Valve to Manifold Tube, Page 8-351

1шт.

2

PTO Brake Drain Tube, Page 8-269

1шт.

3

Regulator Valve to Differential Lock Valve Tube, Page 7-253

1шт.

4

Differential Lock Valve to Transmission Tube, Page 7-253

1шт.

5

Regulator Valve to PTO Clutch Tube, Page 8-269

1шт.

6

Regulator Valve to PTO Brake Tube, Page 8-269

1шт.

7

Manifold to Lift Cylinder Tube, Page 8-351

1шт.

8

Right Hitch Valve Pilot Tube, Page 8-275

1шт.

9

Left Hitch Valve Pilot Tube, Page 8-275

1шт.

10

Pump To Regulator Valve Hose, Page 8-269

1шт.

11

Regulator Valve to Shift Manifold Supply Tube, Page 8-271

1шт.

12

Control Valve to Shift Manifold Tube, Page 8-271

1шт.

13

Hydraulic Pump Drain Tube, Page 8-275

1шт.

14

Transmission Charge Pump Tube, Page 8-279

1шт.

15

C1 Clutch Fill Tube, Page 8-271

1шт.

16

C4 Clutch Fill Tube, Page 8-271

1шт.

17

Filter Housing to Pump Suction Tube, Page 8-275

1шт.

18

Transmission Countershaft Lubrication Tube, Page 8-279

1шт.

19

C1 Clutch Lubrication Tube, Page 8-279

1шт.

20

Steering Suction Tube, Page 8-275

1шт.
