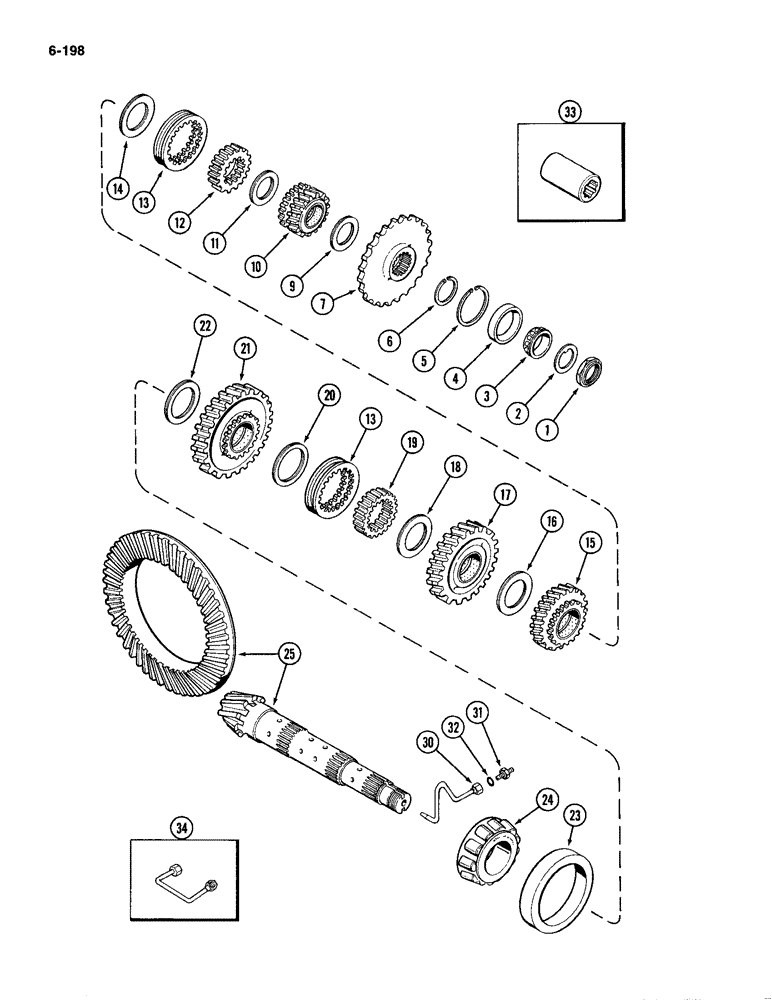

Запчасти Case IH 2094 (6-198) - TRANSMISSION COUNTERSHAFT (06) - POWER TRAIN

1

A60019

NUT

- bearing lock

1шт.

1

A156561

NUT

- bearing lock (Carraro No. 113095) (MFD Tractor)

1шт.

2

A28170

WASHER

- bearing

1шт.

3

R32217

ROLLER BEARING,50 mm ID x 21.5 mm

CONE - bearing, countershaft front, 1-31/32 inch ID (50 mm)

1шт.

4

R32216

BEARING CUP,82 mm OD x 17 mm

CUP - bearing, countershaft front, 3-15/64 inch O.D. (82 mm)

1шт.

5

A152194

RING

- snap, bearing

1шт.

6

A150930

RING

- snap, park lock gear, 0.078 inch (1.98 mm)

1шт.

6

A152278

RING

- snap, park lock gear, 0.088 inch (2.24 mm)

1шт.

6

A152279

RING

- snap, park lock gear, 0.098 inch (2.49 mm)

1шт.

6

A152280

RING

- snap, park lock gear, 0.108 inch (2.74 mm)

1шт.

6

A152281

RING

- snap, park lock gear, 0.118 inch (3.0 mm)

1шт.

6

A152282

RING

- snap, park lock gear, 0.128 inch (3.25 mm)

1шт.

6

A152283

RING

- snap, park lock gear, 0.138 inch (3.51 mm)

1шт.

7

A155636

GEAR

- park lock (See Figure 6-190)

1шт.

9

A152706

WASHER

- thrust, 0.109 inch (2.77 mm)

1шт.

10

A157394

GEAR

- driven, fourth, 19 and 31 teeth

1шт.

11

A152705

WASHER

- thrust, 0.203 inch (5.16 mm)

1шт.

12

A153892

HUB

- third and fourth gear (39 internal, 31 external teeth)

1шт.

13

A168028

COLLAR

- shift, sliding

2шт.

14

A152704

WASHER

- thrust, 0.156 inch (3.96 mm)

1шт.

15

A157396

GEAR

- driven, third (29 and 31 teeth)

1шт.

16

A152703

WASHER, THRUST

WASHER - thrust, 0.436 inch (11.07 mm)

1шт.

17

A157398

GEAR

- driven, second (29 and 31 teeth)

1шт.

18

A152702

WASHER

- thrust, 0.156 inch (3.96 mm)

1шт.

19

A153891

HUB

- first, second and reverse gear (43 internal, 31 external teeth)

1шт.

20

A152701

WASHER

- thrust, 0.156 inch (3.96 mm)

1шт.

21

A157400

GEAR

- driven, first (42 and 31 teeth)

1шт.

22

A152700

WASHER

- thrust, 0.250 inch (6.35 mm)

1шт.

23

A140553

LAMP

- bearing, countershaft rear, 6-3/4 inch O.D. (171 mm)

1шт.

24

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE - bearing, countershaft rear, 3 inch ID (76 mm)

1шт.

25

A168188

GEAR-SET

GEAR SET - pinion and countershaft (Matched set)

1шт.

25

A168189

GEAR

SET - pinion and countershaft (Matched set) (MFD Tractor)

1шт.

30

A154742

TUBE

- countershaft lube, internal

1шт.

31

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 1/4 inch tube x 7/16-20 inch

1шт.

32

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 1 mm)

1шт.

33

A156562

COUPLING, BREAK AWAY

COUPLING - countershaft (Carraro No. 109932) (MFD Tractor)

1шт.

34

A157297

TUBE

- countershaft lube (MFD Tractor)

1шт.

A153571

O-RING,0.799" ID x 1.005" OD x 0.103"

- countershaft, 1 inch (25 mm) (MFD Tractor) (Not Shown)

1шт.
