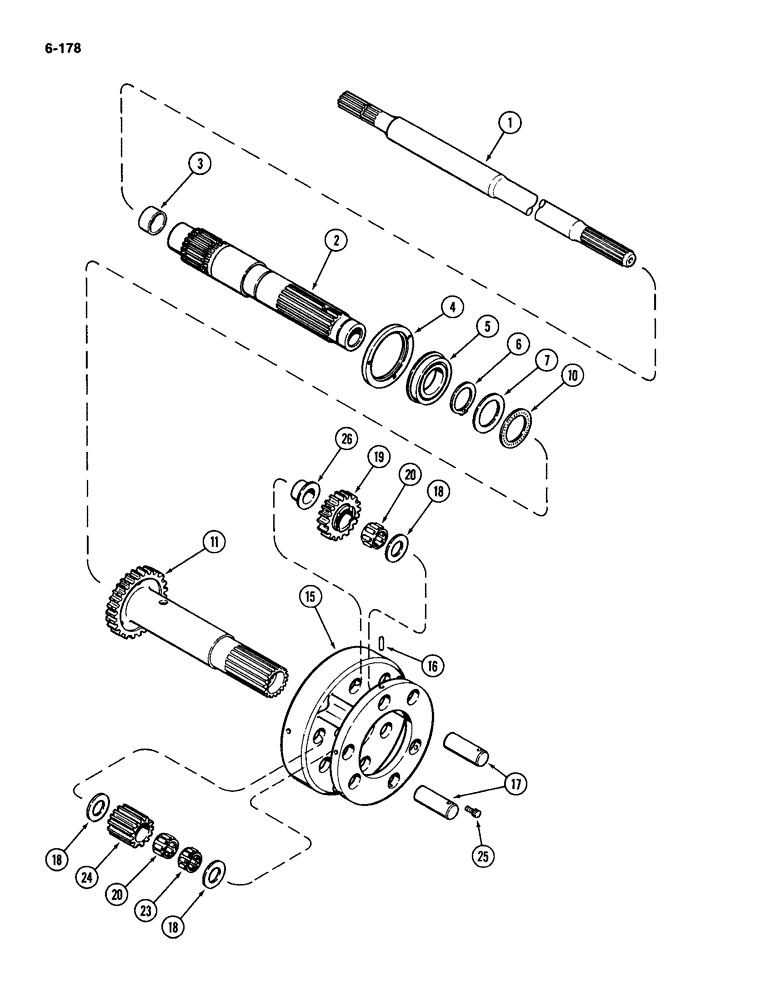

Запчасти Case IH 2094 (6-178) - POWER SHIFT TRANSMISSION, CLUTCH PLANETARY (06) - POWER TRAIN

1

A156861

SHAFT

- input, power and PTO drive, front

1шт.

2

A168494

SHAFT

ASSEMBLY - pinion drive, Includes: Ref. 3

1шт.

Distance between snap ring grooves is 2.115"/2.105". Also used in some applications is A168012, same except distance between snap ring grooves is 1.605". Also used in some applications is A168013, which is one inch shorter than the first two and distance between snap ring grooves is 1.6".

1шт.

3

A156939

BUSHING,31.83mm ID x 35.88mm OD x 19.05mm L

- PTO shaft support

1шт.

4

A146603

RETAINER

- carrier bearing

1шт.

5

A63109

BEARING, BALL

BEARING - ball, carrier (Includes snap ring)

1шт.

6

A7611

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

7

A54021

WASHER

RACE - thrust, 2-1/2 inch (63 mm)

1шт.

10

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING - flange, needle thrust

1шт.

11

A158704

SHAFT

- planetary input drive

1шт.

15

A168487

CARRIER

- planetary

1шт.

16

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

16

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

17

A58067

PIN,25.4mm OD x 69.6mm L

- plantery gear

6шт.

18

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planetary gear, 1-3/4 inch (44 mm)

9шт.

19

A63105

GEAR

- planetary, short, 36 teeth, 1-1/4 inch long (32 mm)

3шт.

20

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller, planetary gear

6шт.

23

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - roller, planetary gear

3шт.

24

A58408

GEAR

- planetary

3шт.

25

62-48

HEX SOC SCREW,1/4"-28 x 1/2"

SCREW - hex socket head, 1/4 NF x 1/2 inch

3шт.

26

A140877

SPACER,25.65mm ID x 31.88mm OD x 27.9mm L

- flanged, short gear, 1.088" - 1.098" high

3шт.

If the dealer needs a spacer with a height of .852" - .862", order A140878.

1шт.
