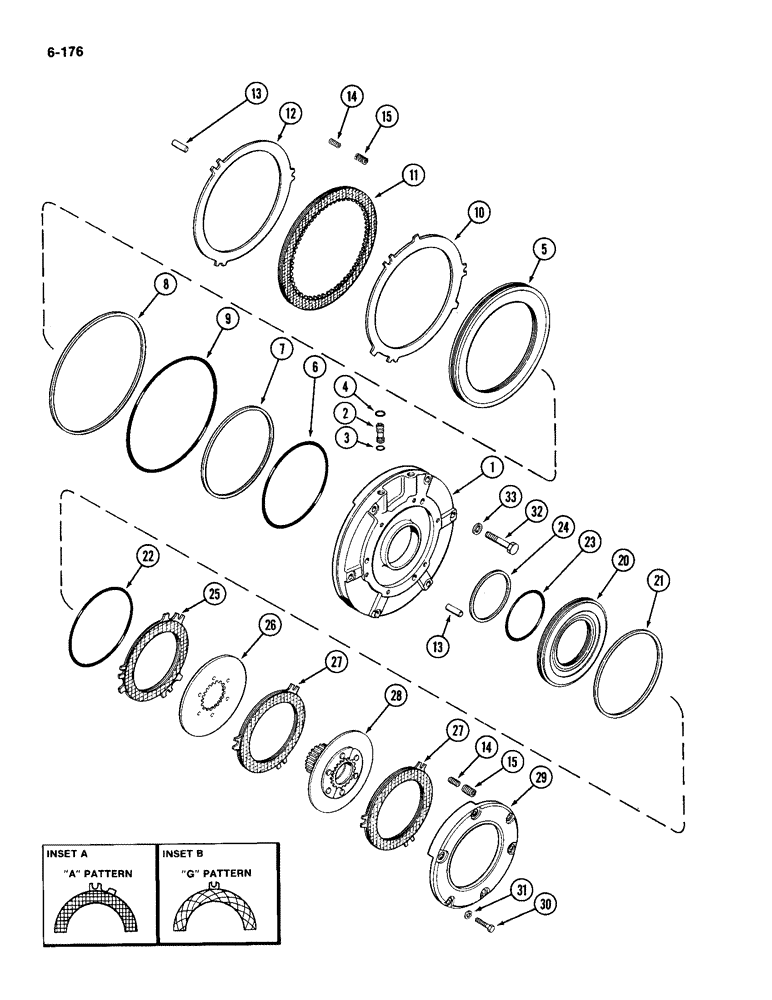

Запчасти Case IH 2094 (6-176) - POWER SHIFT TRANSMISSION, (C1) AND (C4) CLUTCHES (06) - POWER TRAIN

1

A142233

CARRIER

- piston, (C1) and (C4)

1шт.

2

A142241

TUBE

- oil (C1) and (C4) clutch

2шт.

3

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 5/8 inch (16 mm) (Order G102845)

2шт.

Part of Seal Kit, P/N A46286

1шт.

4

A65918

O-RING,0.551" ID x 0.691" OD

- 11/16 inch (18 mm)

2шт.

5

A146671

PISTON

- (C4) clutch

1шт.

6

A150752

O-RING,9.206" ID x 0.107" OD

- internal seal, 9-5/32 inch ID (233 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

7

A146681

SEAL

- seal, internal, 8-31/32 inch ID (228 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

8

A146680

RING

- seal, internal, 12-9/16 inch O.D. (319 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

9

A150751

O-RING,12.09" ID x 0.107"

RING - internal seal, 12-1/6 inch O.D. (306 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

10

A58056

PLATE

- steel, (C4) clutch, with tabs

1шт.

11

A67128

PLATE

- friction, (C4) clutch

2шт.

12

A75105

PLATE

- steel, (C4) clutch, without tabs

2шт.

13

A65555

PIN

- clutch reaction plate (C4), 1-37/64 inch long (40 mm)

6шт.

14

A142613

SPRING

- return (C4), 23/64 diameter x 1-1/4 inch free length (9 x 32 mm) (Replaces A62607)

6шт.

15

A62606

SPRING

- return (C4), 9/16 diameter x 1-3/32 inch free length (14 x 28 mm)

6шт.

20

A146670

PISTON

- (C1) clutch

1шт.

21

A146682

RING

- seal, external, 8-9/32 inch O.D. (210 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

22

A150753

O-RING,7.84" ID x 0.107"

- external seal, 7-7/8 inch O.D. (200 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

23

A150754

O-RING,4.718" ID x 0.107"

- internal seal, 4-11/16 inch ID (119 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

24

A146683

RING

- seal, external, 4-15/32 inch ID (114 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

25

A142361

PLATE

- (C1) clutch with tabs ("A" type groove pattern, See Inset A)

1шт.

"A" and "G" groove patterns are not to be mixed. Ref. 25 and 27 must have same groove pattern. Order parts carefully.

1шт.

25

A168484

PLATE

- (C1) clutch with tabs ("G" type groove pattern, See Inset B)

1шт.

"A" and "G" groove patterns are not to be mixed. Ref. 25 and 27 must have same groove pattern. Order parts carefully.

1шт.

26

A152112

PLATE

- (C1) clutch, steel

1шт.

27

A142360

PLATE

- (C1) clutch without tabs ("A" type groove pattern, See Inset A)

2шт.

"A" and "G" groove patterns are not to be mixed. Ref. 25 and 27 must have same groove pattern. Order parts carefully.

1шт.

27

A168483

PLATE

- (C1) clutch without tabs ("G" type groove pattern, See Inset B)

2шт.

"A" and "G" groove patterns are not to be mixed. Ref. 25 and 27 must have same groove pattern. Order parts carefully.

1шт.

28

A152623

PLATE

- sun reaction, (C1) clutch, 3.582" gear

1шт.

29

A142240

PLATE

- (C1) reaction

1шт.

30

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

31

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 3/4 inch (19 mm)

6шт.

32

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

6шт.

33

A30061

WASHER

- 15/16 inch (24 mm)

6шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: Refs. 3, 6, 7, 8, 9, 21, 22, 23, and 24

1шт.
