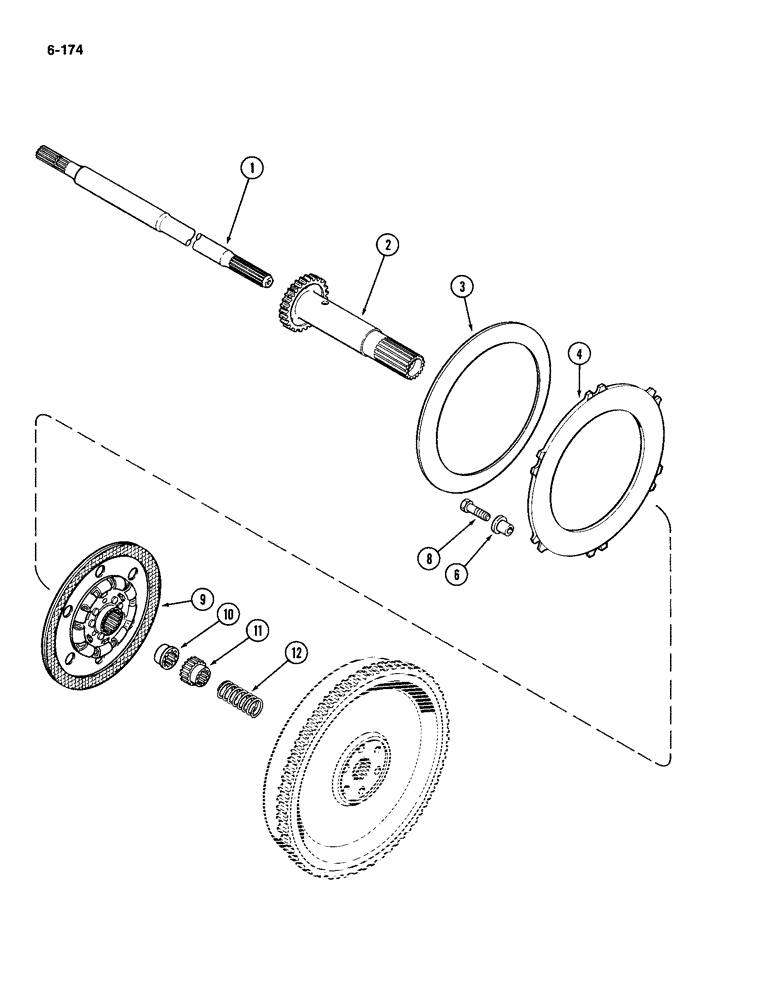

Запчасти Case IH 2094 (6-174) - POWER SHIFT TRANSMISSION, TORQUE LIMITER (06) - POWER TRAIN

1

A156861

SHAFT

- drive, PTO and hydraulic pump

1шт.

2

A158704

SHAFT

- planetary drive

1шт.

3

A64370

SPRING

- belleville

1шт.

4

A155859

PLATE

- pressure

2шт.

6

A155865

RETAINER

- torque limiter spring

6шт.

8

26-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch (Grade 8)

6шт.

9

A157381

PLATE

- torque limiter

2шт.

10

A65415

BUSHING,17T

- drive shaft

1шт.

11

A66609

SLEEVE

- drive shaft

1шт.

12

A65416

SPRING

- sleeve

1шт.

REF

INSTRUCTION

FLYWEEL, See Figure 2-30

1шт.
