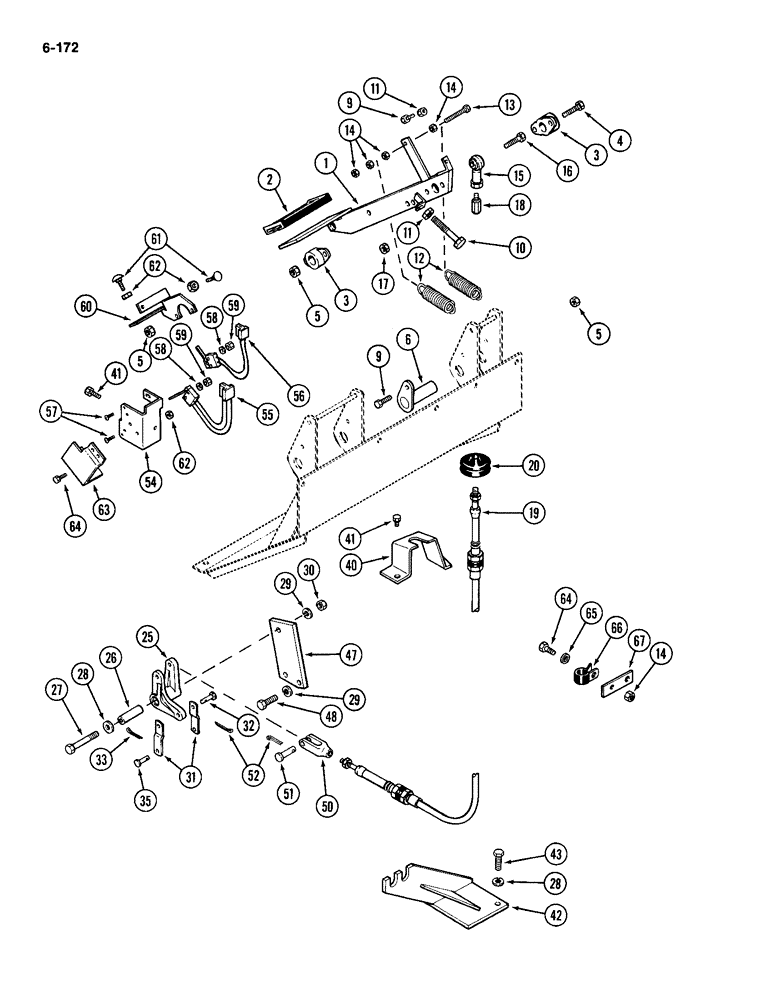

Запчасти Case IH 2094 (6-172) - POWER SHIFT TRANSMISSION, INCHING PEDAL LINKAGE (06) - POWER TRAIN

1

A164689

PEDAL

- foot inching

1шт.

2

F9197

PAD

TREAD - rubber, foot pedal

1шт.

3

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pivot, foot pedal

2шт.

4

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

5

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex lock, 5/16 inch NC

3шт.

6

A60305

SHAFT

- pivot, foot pedal

1шт.

9

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

10

113-116

BOLT,Hex, 5/16" - 18 x 3-1/2", SST

- hex, 5/16 NC x 3-1/2 inch

2шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

12

A177378

SPRING

- return, pedal (Replaces A161864)

2шт.

13

113-57

BOLT,Hex, 1/4" - 20 x 2", Gr 5, Full Thd

- hex, 1/4 NC x 2 inch

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

5шт.

15

A32398

BALL JOINT

END - female, Serial Range: cable-pedal

1шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

18

A161332

ADAPTER

- end to cable, 3/8 to 5/16 inch NF

1шт.

19

A161778

CABLE

- control, 5/16 inch ends

1шт.

20

A141739

BOOT

COVER -, Serial Range: cable-floor

1шт.

25

A161553

CRANK LEVER

BELLCRANK - valve spool

1шт.

26

A161043

SHAFT

- pivot, bellcrank

1шт.

27

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

28

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1-1/6 inch (10 x 21 x 27 mm)

3шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

31

A149991

LINK

-, Serial Range: bellcrank-spool

2шт.

32

141-52

CLEVIS PIN,1/4" x .770"

PIN - link to bellcrank

1шт.

33

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

35

A8823

PIN,6.29mm OD x 26.99mm L

- link to clutch spool

1шт.

40

A161336

CAB

BRACKET - cable (on platform)

1шт.

41

187-1332

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 5/8"

BOLT - self tapping, 3/8 NC x 5/8 inch

2шт.

42

A166323

STRAP

BRACKET - cable (on torque tube)

1шт.

43

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

47

A161824

PLATE

- clutch bellcrank

1шт.

48

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

50

A180427

CLEVIS

YOKE - cable (Order H44198)

1шт.

51

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

52

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

54

A169843

BRACKET

- switch mounting

1шт.

55

A166333

SWITCH

- micro shift, (C1) (C4)

1шт.

56

A167041

SWITCH

- micro shift, upper

1шт.

57

182-503

SCREW,Sl Pan Hd, #6 - 32 x 1"

- pan head slotted, No. 6-32 x 1 inch

4шт.

58

195-507

WASHER,#6

- 5/32 x 3/8 x 3/64 inch ( 4 x 10 x 1 mm)

4шт.

59

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

4шт.

60

A169838

BRACKET

- switch actuator

1шт.

61

111-111

CARRIAGE BOLT,Short NK, 1/4"-20 x 1", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1", G2

2шт.

62

129-141

JAM NUT,Jam, 1/4"-20, G5

4шт.

63

A169837

COVER

- switch

1шт.

64

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

65

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1-16 inch (8 x 19 x 2 mm)

1шт.

66

49768

CLIP

- cable retaining

1шт.

67

A67290

BRACKET

- retaining

1шт.
