Запчасти Case IH 2094 (6-166) - POWER SHIFT TRANSMISSION, GEAR SHIFT LINKAGE (06) - POWER TRAIN

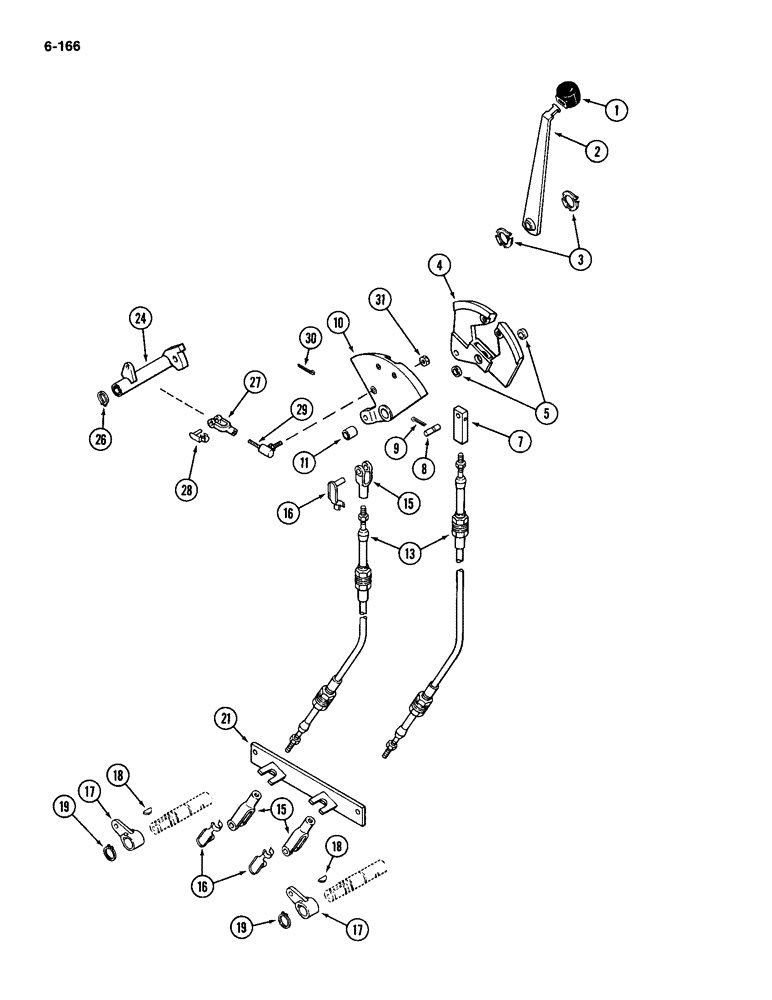

Схема запчастей Case IH 2094 - (6-166) - POWER SHIFT TRANSMISSION, GEAR SHIFT LINKAGE (06) - POWER TRAIN
18
3
19
19
4
1
11
17
29
27
13
24
21
8
30
16
15
31
10
17
18
16
5
2
26
15
9
7
28

Артикул

Название

Примечание

Количество

1

A167956

KNOB

- hand lever (Red) (Order A177436), Includes: Ref. 2

1шт.

2

A149899

LEVER

- hand

1шт.

3

A162628

WASHER,25.4mm ID x 39.5mm OD x 1.57mm Thk

- pivot

2шт.

4

A61869

QUADRANT

ASSEMBLY - shift, first and second gear

1шт.

5

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

- pivot

2шт.

7

A160511

EYE

- connector, cable to quadrant, 5/16 inch NF thread

1шт.

8

A145484

PIN,9.46mm OD x 28.57mm L

- quadrant

1шт.

9

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

1шт.

10

A135170

QUADRANT

ASSEMBLY - shift, third and fourth gear

1шт.

11

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- pivot

1шт.

13

A160512

CABLE

- quadrant to lower lever, 5/16 inch NF thread

2шт.

15

A160630

CLEVIS,5/16" - 24

YOKE - cable, 5/16 inch NF thread

3шт.

16

A147652

PIN

- yoke

2шт.

17

A67298

LEVER

- transmission shift

2шт.

18

126-118

WOODRUFF KEY,#10, 5/32" x 7/8", HT

KEY - woodruff, 5/32 x 3/4 inch

2шт.

19

F62023

SNAP RING,#93, Ext

Ring, Snap, , lever #93, Ext

2шт.

21

A160516

STRAP

- control cable

1шт.

24

A176757

LEVER

- reverse lockout (Replaces A169772)

1шт.

26

D32101

SNAP RING,#62, Ext

Ring, Snap, , reverse lockout lever (if equipped) #62, Ext

1шт.

27

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - reverse lockout

1шт.

28

A163098

PIN

- clevis (Replaces 141-53)

1шт.

29

A163017

BALL

JOINT - reverse lockout

1шт.

30

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , If equipped 3/32" x 3/4"

1шт.

31

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex lock, 3/8 inch NF

1шт.

Выбрано товаров: 24
