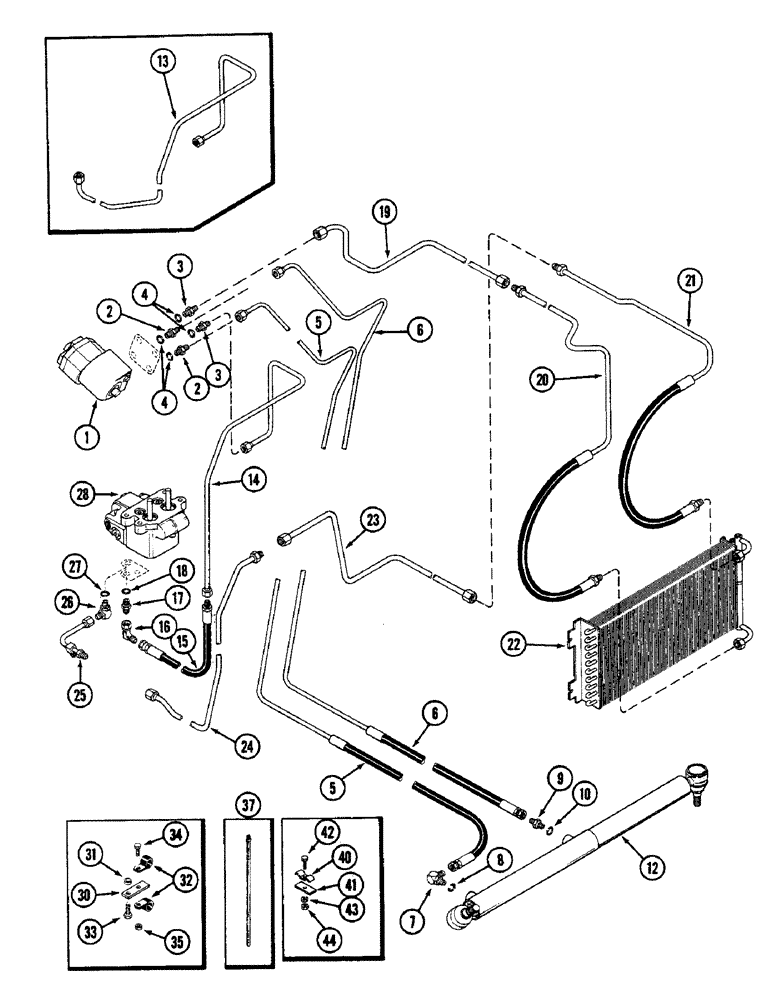

Запчасти Case IH 2090 (5-164) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering, See Figure 5-170

1шт.

2

A149481

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - 1/2 inch tube (Steering cylinder hoses), Includes: Ref. 4

2шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2 inch tube (To brake valve and oil cooler tubes), Incl. Ref 4

2шт.

5

A160895

HOSE

- right, steering cylinder, standard wheel base (Replaces A147962)

1шт.

ref#5 a160895 length is 58.3

1шт.

5

A163379

TUBE ASSY.

HOSE - right, steering cylinder, long wheel base

1шт.

ref#5 a163379 length is 52.2 2-25-99 cw

1шт.

6

A160896

HOSE

- left, steering cylinder, standard wheel base (Replaces A147963)

1шт.

6

A163380

TUBE ASSY.

HOSE - left, steering cylinder, long wheel base

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, 1/2 tube x 3/4 inch PT (Right cylinder port), Includes: Ref. 8

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2 tube x 3/4 inch PT (Left cylinder port), Incl. Ref 10

1шт.

12

G102894

CYLINDER

ASSEMBLY - steering, See Figure 5-172

1шт.

13

A149312

TUBE

- brake to pump (Order 1-A160363, 1-A140436 and 1-218-5230)

1шт.

14

A160363

PIPE

TUBE - pump to valve hose (Replaces A149312)

1шт.

15

A140436

HOSE,0.50" ID x 24.00", SAE 100R1

- Pump tube to valve 0.50" ID x 24.00", SAE 100R1

1шт.

16

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 1/2 tube x 3/4-16 inch swivel

1шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2 tube x 3/4 inch PT straight, Incl. Ref 18

1шт.

19

A147956

TUBE

- oil cooler to steering pump

1шт.

20

A147957

HOSE

- oil cooler inlet

1шт.

21

A147958

TUBE

- oil cooler outlet

1шт.

22

A160399

COOLER

- oil, See Figure 5-168

1шт.

23

NLS

NO LONGER SERVICED

- oil cooler outlet, center

1шт.

24

A147699

TUBE

- oil cooler outlet to brake valve

1шт.

25

A147196

MANIFOLD

- brake valve pump

1шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 1/2 tube x 3/4 inch PT, Includes: Ref. 27

1шт.

28

G105178

VALVE

- power brake, See Figure 7-336

1шт.

30

A67290

BRACKET

- steering hose clamps

1шт.

31

A67289

BUSHING

SPACER - bracket to oil pan

1шт.

32

NLS

NO LONGER SERVICED

- tube

2шт.

33

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

34

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

1шт.

35

131-461

LOCK NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

40

A63323

CLAMP

- tube

1шт.

41

A60864

PLATE

- clamp

1шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.
