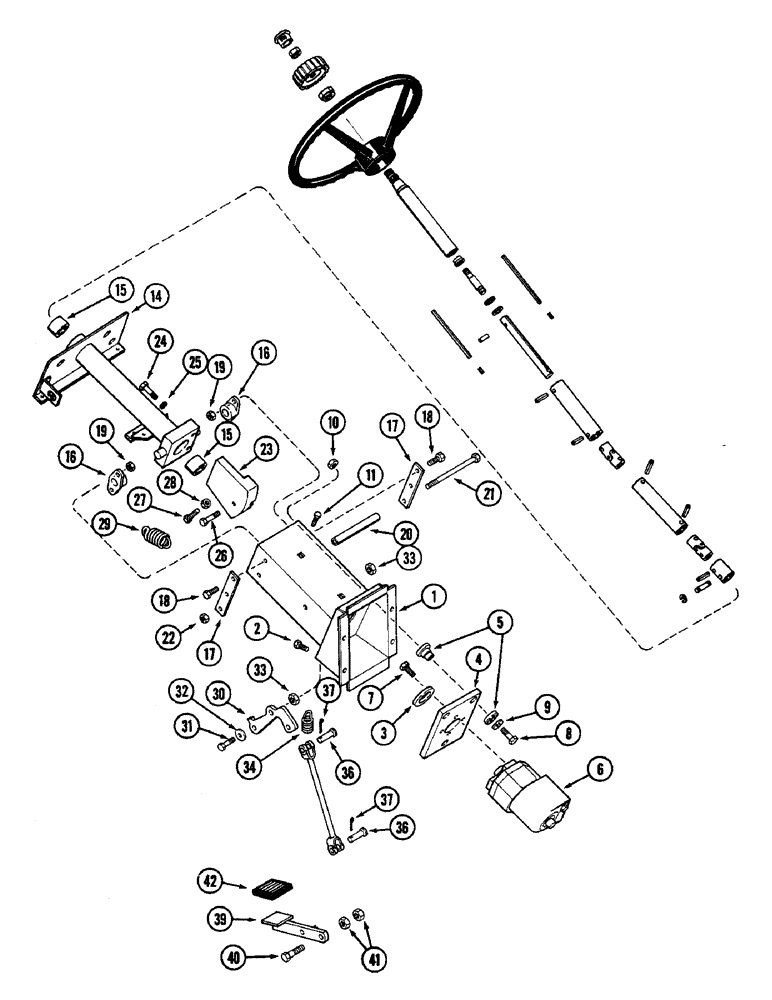

Запчасти Case IH 2090 (5-160) - ADJUSTABLE STEERING COLUMN (05) - STEERING

1

A160589

SUPPORT

- steering column (Order A167112)

1шт.

2

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

3

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

- steering pump mounting

1шт.

4

A145914

PLATE

- steering pump mounting

1шт.

5

A141515

ISOLATOR

MOUNT - steering pump

3шт.

6

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering, See Figure 5-170

1шт.

7

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

8

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

9

195-524

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16 inch (10 x 29 x 2 mm)

3шт.

10

131-133

NUT,Ret, 3/8"-16

1шт.

11

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

14

A141680

SHAFT ASSY.

COLUMN - steering, Includes: Ref. 15

1шт.

15

A67304

BUSHING

BEARING - steering column

2шт.

16

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- column pivot

2шт.

17

A143314

STRAP

- support brace

2шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

19

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex lock, 5/16 inch NC

4шт.

20

A143315

BUSHING

SPACER - column support

1шт.

21

113-115

BOLT,Hex, 5/16" - 18 x 6", Gr 5

1шт.

22

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

23

A143317

QUADRANT

- column tilt

1шт.

24

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

26

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

27

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

28

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

29

A143316

SPRING

- tilt return

1шт.

30

A67307

LATCH

- column tilt

1шт.

31

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

32

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

1шт.

33

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

34

A64125

SPRING

- tilt latch

1шт.

35

A64549

ROD

- tilt latch

1шт.

36

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

37

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

39

A64127

PEDAL

- steering tilt

1шт.

40

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

41

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

42

A75351

SKID/SHOE

PAD - pedal, nonskid

1шт.
