Запчасти Case IH 2090 (4-152) - FLOOD LAMP ATTACHMENTS, UPPER FRONT OR REAR (04) - ELECTRICAL SYSTEMS

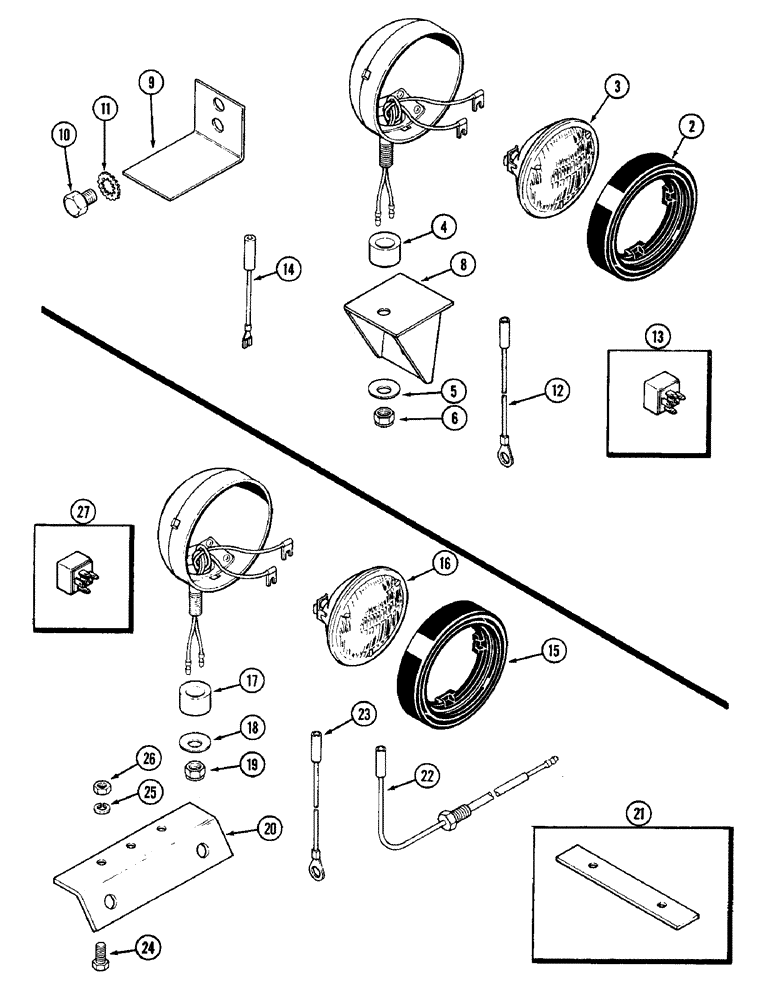

Схема запчастей Case IH 2090 - (4-152) - FLOOD LAMP ATTACHMENTS, UPPER FRONT OR REAR (04) - ELECTRICAL SYSTEMS
25
18
26
22
5
4
14
16
20
9
19
2
3
23
13
17
8
12
10
15
21
27
11
24
6

Артикул

Название

Примечание

Количество

A160602

INTERIOR LIGHT

ATTACHMENT - upper flood lamp, Includes: Ref. 2 - 12

1шт.

A145495

LAMP

ASSEMBLY, Includes: Ref. 2 - 4

2шт.

2

A25213

RETAINER

- bulb

1шт.

3

A47179

BULB

- sealed beam (No. H7606)

1шт.

4

D37048

BUSHING

- pivot

1шт.

5

D37049

WASHER

- mounting

2шт.

6

129-125

NUT,1/2"-20, G5

2шт.

8

A149102

BRACKET

- mounting, Serial Range: lamp-cab

2шт.

9

A149792

GUARD

SHIELD - lamp terminal

2шт.

10

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

12

A147344

ELECTRICAL WIRE

WIRE - ground (With 1/2 inch eyelet)

2шт.

13

A147176

RELAY

- harness

1шт.

14

A160351

ELECTRICAL WIRE

WIRE - adapter

2шт.

A160603

ATTACHMENT

- front, lower flood lamp, Includes: Ref. 15 - 27

1шт.

A145495

LAMP

ASSEMBLY, lower front, Includes: Ref. 15 - 17

2шт.

15

A25213

RETAINER

- bulb, lower front

1шт.

16

A47179

BULB

- sealed beam (No. H7606), lower front

1шт.

17

D37048

BUSHING

- pivot, lower front

1шт.

18

D37049

WASHER

- mounting, lower front

2шт.

19

129-125

NUT,1/2"-20, G5

Lower front 1/2"-20, G5

2шт.

20

A160889

BRACKET

- lamp mounting, lower front

2шт.

21

A22837

BUSHING

SPACER - step rear, lower front

1шт.

22

A147345

HARNESS

- front, lower

1шт.

23

A147343

ELECTRICAL WIRE

WIRE - ground (With 3/8 inch eyelet), lower front

2шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Lower front Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Lower front 3/8"

2шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Lower front 3/8"-16, G5

2шт.

27

A147176

RELAY

- harness, lower front

1шт.

Выбрано товаров: 29
