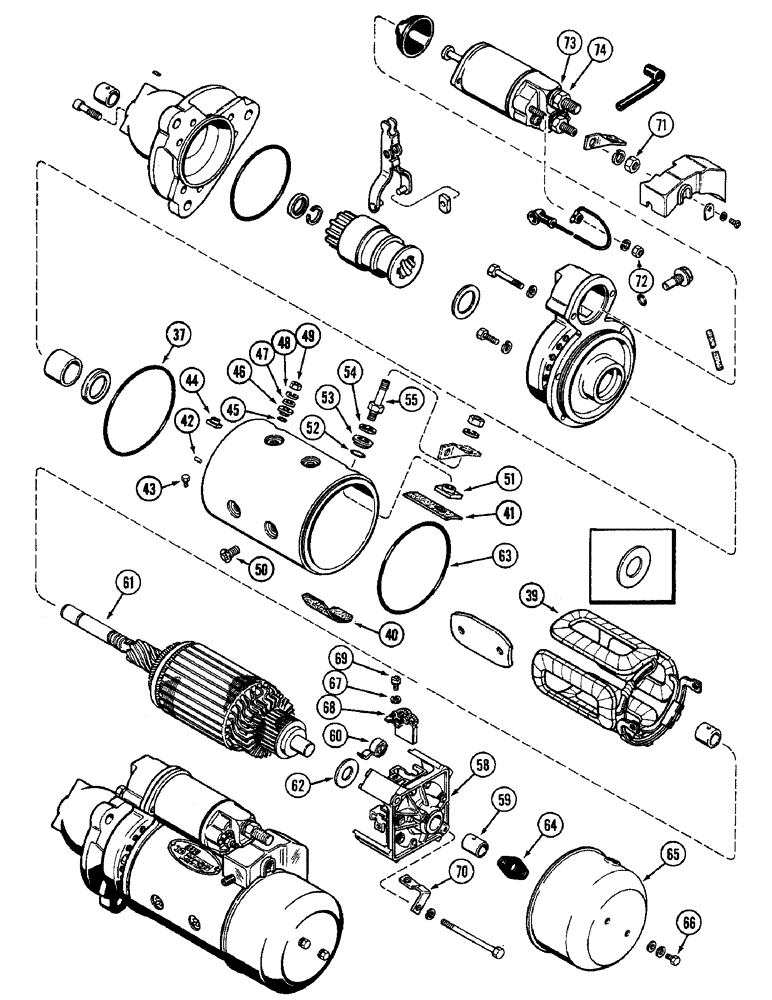

Запчасти Case IH 2090 (4-126) - A162469 STARTER ASSEMBLY, P.I.N. 9907663 AND AFTER (CONTD) (04) - ELECTRICAL SYSTEMS

A162469

STARTING MOTOR

STARTER ASSEMBLY, Includes: Ref. 37 - 74 and 2 - 33 on Figure 4-124

1шт.

37

A47820

O-RING

- yoke to center bearing

1шт.

A47821

YOKE

ASSEMBLY - field coil, Includes: Ref. 39 - 55

1шт.

39

A47822

COIL

ASSEMBLY - field

1шт.

40

A47833

INSULATOR

- field

1шт.

41

A47832

INSULATOR

- field oil

1шт.

42

A47824

PIN

- yoke dowel

1шт.

43

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

- hex, coil to frame, M5 x 0.8 x 10 mm

1шт.

44

A47825

BUSHING

- terminal insulating, inner

1шт.

45

A47826

RING

O-RING - terminal

1шт.

46

A47827

BUSHING

- terminal insulating, outer

1шт.

47

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64 inch (6 x 13 x 1 mm)

1шт.

48

892-1105

LOCK WASHER,M5

WASHER - lock, M5

2шт.

49

825-1105

NUT,M5, Cl 8

- hex, M5

1шт.

50

A47823

SCREW,M10 x 1.5 x 1.5mm

- coil, flat head, M10 x 1.5 x 20 mm

8шт.

51

A47829

BUSHING

- terminal insulating, inner

1шт.

52

A47830

RING

O-RING - terminal

1шт.

53

A47831

BUSHING

- terminal insulating, outer

1шт.

54

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

1шт.

55

A47828

BOLT

- terminal

1шт.

58

A47814

FRAME

ASSEMBLY - commutator end, Includes: Ref. 59 & 60

1шт.

59

A47784

BUSHING

- commutator end frame

1шт.

60

A47815

SPRING

- brush

4шт.

61

A47812

ARMATURE

ASSEMBLY - starter

1шт.

62

A47813

WASHER

- armature end

1шт.

63

39738

O-RING,4.609" ID x 0.139" Width

- end cover

1шт.

64

A47835

GASKET

- end cover

1шт.

65

A47834

COVER

- starter end

1шт.

66

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

- cover retaining, hex, M5 x 0.8 x 10 mm

2шт.

67

892-1106

LOCK WASHER,M6

2шт.

68

A47817

BRUSH, COMMUTATOR

BRUSH - starter

4шт.

69

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

- brush retaining, M5 x 0.8 x 12 mm

4шт.

70

A47818

CONNECTOR, ELEC

CONNECTOR - brush

2шт.

71

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

72

193-1000

NUT,Keps, w/LW,#10-32

- hex Keps, no. 10-24

1шт.

73

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

74

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
