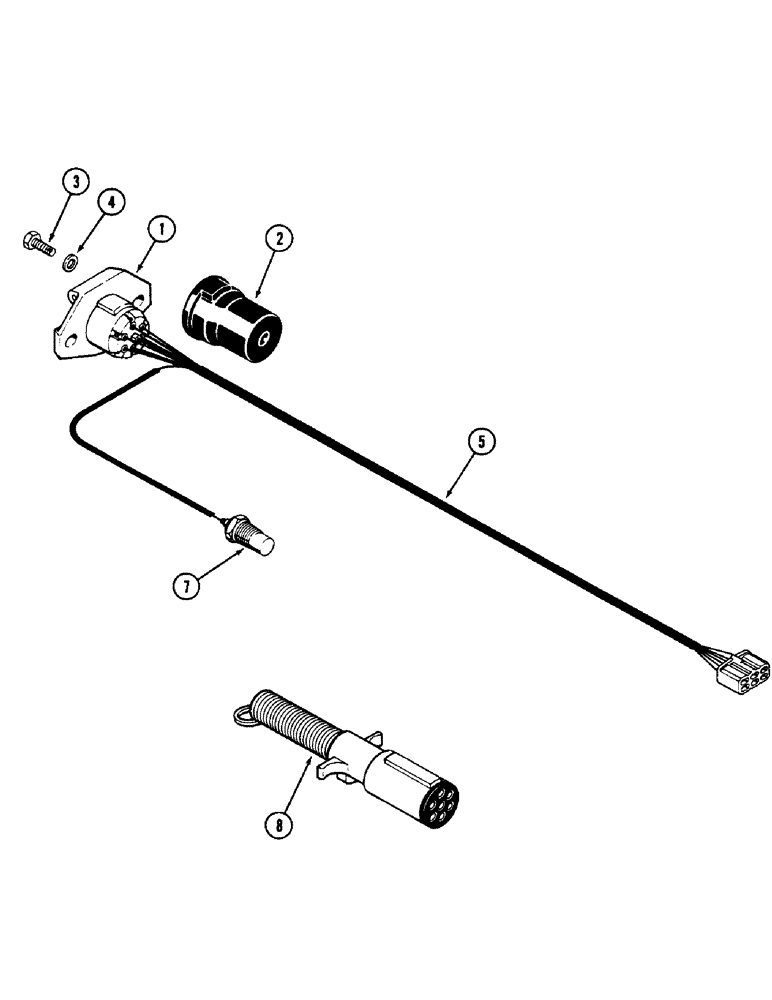

Запчасти Case IH 2090 (4-108) - AUXILIARY ELECTRIC OUTLET (04) - ELECTRICAL SYSTEMS

A67470

KIT

- auxiliary outlet, Includes: Ref. 1 - 5

1шт.

1

A145795

CONNECTOR, ELEC

CONNECTOR - 7 point

1шт.

2

A169283

BOOT

COVER - rubber, connector

1шт.

3

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT - hex self-tapping, 5/16 x 3/4 inch

2шт.

4

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

2шт.

5

A143370

HARNESS

- auxiliary outlet

1шт.

7

A147186

SWITCH ASSY

SWITCH - transmission temperature (Order A154283)

1шт.

8

A139672

PLUG

CONNECTOR - 7 point

1шт.
