Запчасти Case IH 2090 (4-104) - INSTRUMENT CLUSTER, P.I.N. 8844717 AND AFTER (04) - ELECTRICAL SYSTEMS

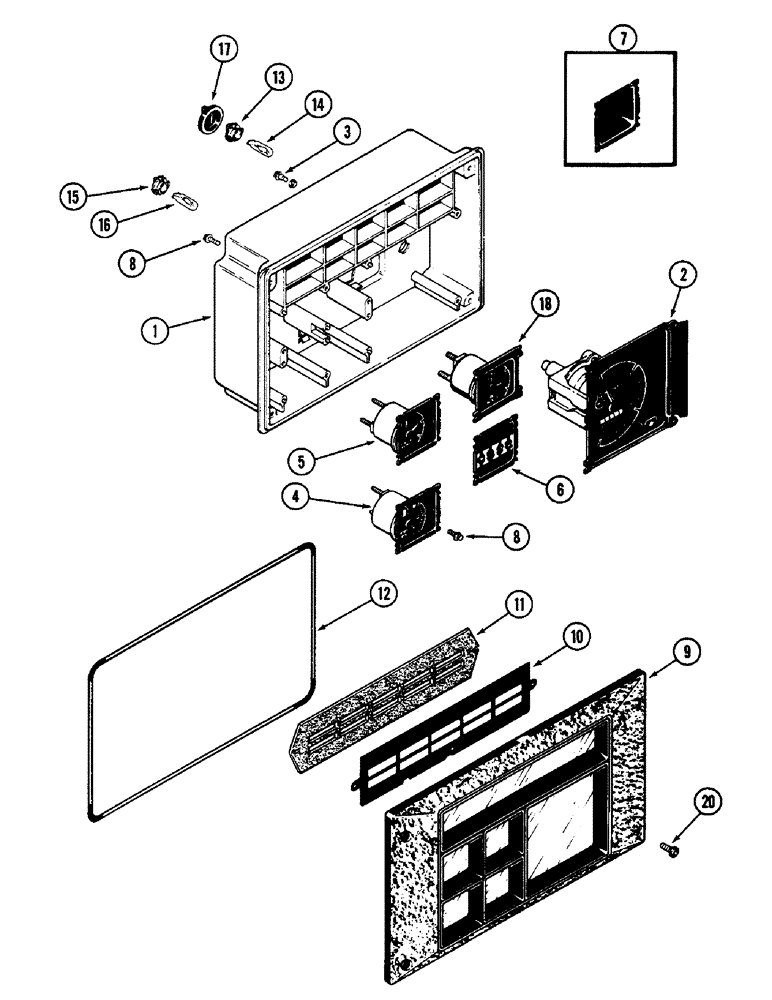

Схема запчастей Case IH 2090 - (4-104) - INSTRUMENT CLUSTER, P.I.N. 8844717 AND AFTER (04) - ELECTRICAL SYSTEMS
20
12
10
5
13
1
2
7
14
8
16
11
8
6
9
18
4
3
17
15

Артикул

Название

Примечание

Количество

1

D71335

CASE ASSY.

CASE ASSEMBLY - instrument, Includes: printed circuit

1шт.

Ref #1 - In Statement, (Includes Circuitboard), it is H422774 Circuitboard 02/12/96

1шт.

2

A47685

ELECTRICAL GAUGE

TACHOMETER

1шт.

3

A47122

BOLT

ASSEMBLY - tachometer

2шт.

4

A47688

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

5

A47687

ELECTRICAL GAUGE

GAUGE - engine water temperature

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - with Case emblem (Order A45010)

1шт.

7

A45010

COVER

- cluster opening

1шт.

8

A45093

SCREW,Hex Slotted, 12.70"

- hex washer self-tapping, no. 6 x 1/2 inch

12шт.

9

A45007

LENS

LENS - bevel, instrument

1шт.

10

A47689

STRIP

- identification, cluster lights

1шт.

11

D71342

GASKET,3.05mm Thk

- identification strip

1шт.

12

D71343

GASKET,4.45mm Thk x 249.68mm ID

-, Serial Range: case-lens

2шт.

13

A47125

PEDESTAL

SOCKET - lamp (Green)

3шт.

14

W10478

LAMP

- gauge (No. 194)

3шт.

15

A47123

SOCKET/RECEPTACLE

SOCKET - lamp (Blue)

9шт.

16

D71346

TAIL LAMP,12V

LAMP - warning and turn signal (No. 168)

9шт.

17

D71344

COVER

- lamp socket

3шт.

18

A154254

ELECTRICAL GAUGE

GAUGE - pyrometer

1шт.

20

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- pan head, mounting, no. 10-32 x 5/8 inch

4шт.
