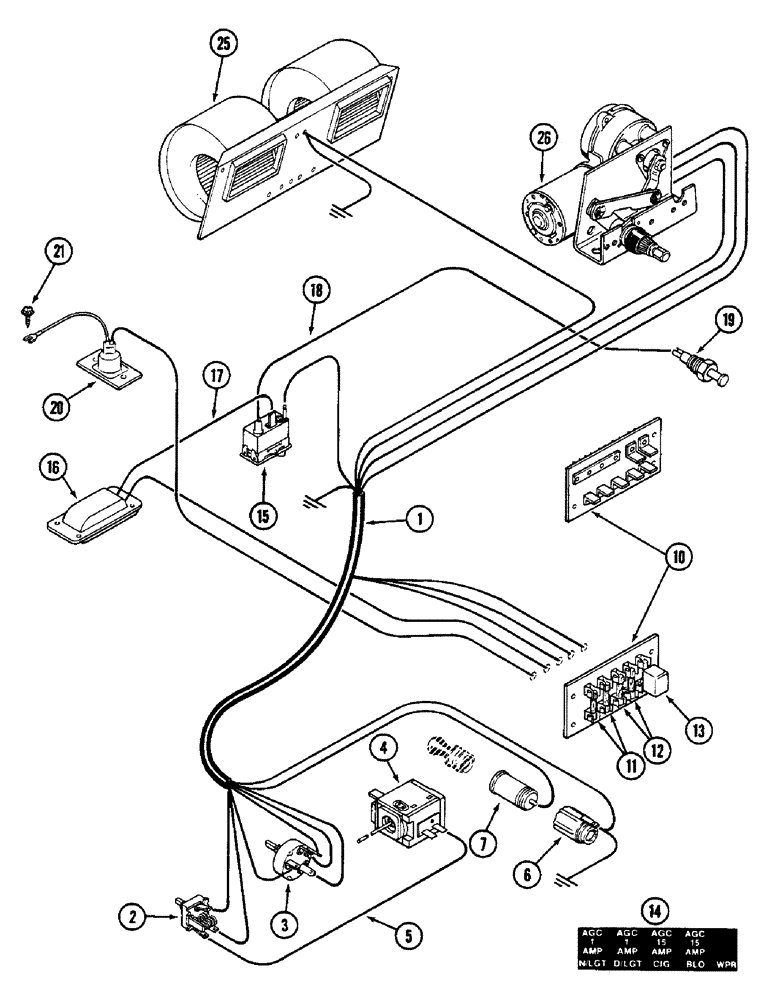

Запчасти Case IH 2090 (4-096) - CAB HEADLINER WIRING, PRIOR TO CAB SERIAL NUMBER 12008153 (04) - ELECTRICAL SYSTEMS

1

F98110

HARNESS

- main wiring

1шт.

2

REF

INSTRUCTION

SWITCH - blower motor, See Figure 9-602

1шт.

3

F43359

SWITCH

- wiper motor, See Figure 9-602

1шт.

4

L73646

SWITCH

- cab temperature, See Figure 9-602

1шт.

5

A42624

ELECTRICAL WIRE

WIRE - temperature switch to blower switch, black, 6 inch (152 mm)

1шт.

6

F63738

CIGAR LIGHTER

SHELL - lighter socket, See Figure 9-602

1шт.

7

F63530

SOCKET/RECEPTACLE

SOCKET - lighter, See Figure 9-602

1шт.

10

REF

INSTRUCTION

BLOCK - fuse

1шт.

11

223-33

FUSE,1 Amp, Type 3AG

- lighter and console lamp (1 amp)

2шт.

12

223-15

FUSE,15 Amp, Type 3AG

- wiper and blower (15 amp)

2шт.

13

F64181

BREAKER

- circuit

1шт.

14

321-3850

DECAL

- fuse block

1шт.

15

F64130

SWITCH

- dome lamp, See Figure 9-578

1шт.

16

REF

INSTRUCTION

LAMP - dome, See Figure 9-578

1шт.

17

F64126

ELECTRICAL WIRE

WIRE - switch to dome lamp, black, 4 inch (102 mm)

1шт.

18

F64127

ELECTRICAL WIRE

WIRE - door switch, white, 70 foot (2 M)

1шт.

19

F63895

SWITCH

- door, dome lamp

1шт.

20

REF

INSTRUCTION

LAMP - console, See Figure 9-578

1шт.

21

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - Phillips self-tapping, no. 10-16 x 1/2 inch

1шт.

25

REF

INSTRUCTION

BLOWER - cab air, See Figures 9-586 and 9-588

1шт.

26

REF

INSTRUCTION

MOTOR - wiper, See Figure 9-604

1шт.
