Запчасти Case IH 2090 (4-092) - CAB LOWER WIRING HARNESS, PRIOR TO CAB SERIAL NUMBER 12008153 (04) - ELECTRICAL SYSTEMS

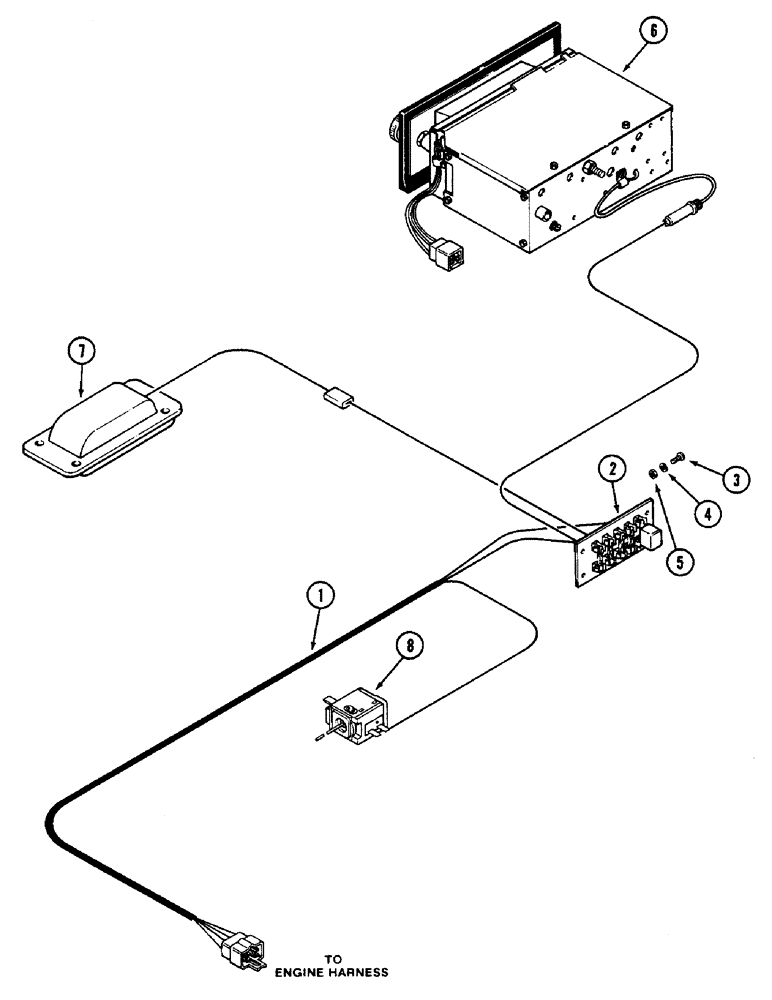

Схема запчастей Case IH 2090 - (4-092) - CAB LOWER WIRING HARNESS, PRIOR TO CAB SERIAL NUMBER 12008153 (04) - ELECTRICAL SYSTEMS
2
6
8
5
4
7
1
3

Артикул

Название

Примечание

Количество

1

F98112

HARNESS

- cab to engine harness

1шт.

2

F98113

BLOCK

- fuse

1шт.

3

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- round head, brass no. 5-40 x 1/2 inch

1шт.

4

195-14

WASHER,#12

- lock, no. 5

1шт.

5

129-630

NUT,#5-40, Brass

- hex, brass no. 5-40

1шт.

6

REF

INSTRUCTION

RADIO, See Figure 9-608

1шт.

7

REF

INSTRUCTION

LAMP, See Figure 9-578

1шт.

8

L73646

SWITCH

- temperature control, See Figure 9-602

1шт.

Выбрано товаров: 8
