(4-086) - REAR LIGHT HARNESS, PRIOR TO P.I.N. 8841101

Запчасти Case IH 2090 (4-086) - REAR LIGHT HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

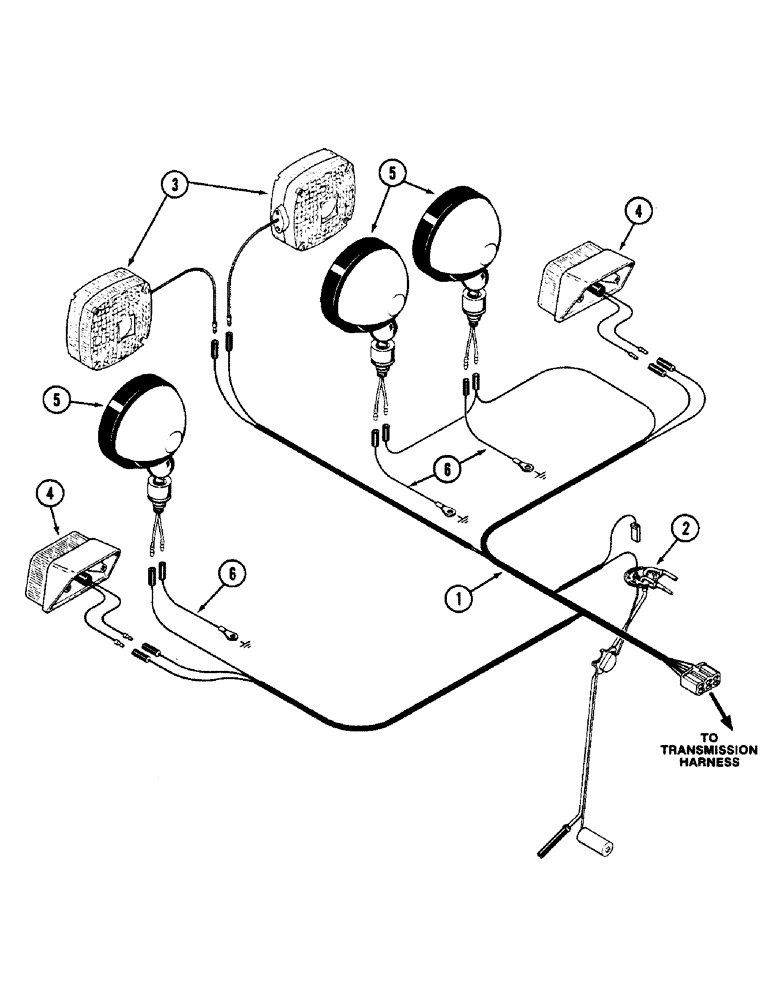

Схема запчастей Case IH 2090 - (4-086) - REAR LIGHT HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS
5
6
6
4
3
1
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A145614

HARNESS

- rear lights

1шт.

2

REF

INSTRUCTION

SENDER - fuel level, See Figure 3-62

1шт.

3

REF

INSTRUCTION

LIGHT - turn signal or flasher, See Figure 4-156

2шт.

4

A143925

LAMP

TAIL LIGHT, See Figure 4-156

2шт.

5

A145495

LAMP

FLOODLIGHT - rear, See Figure 4-150

3шт.

6

A147343

ELECTRICAL WIRE

WIRE - ground, floodlight

3шт.
