(4-082) - TRANSMISSION HARNESS, PRIOR TO P.I.N. 8841101

Запчасти Case IH 2090 (4-082) - TRANSMISSION HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

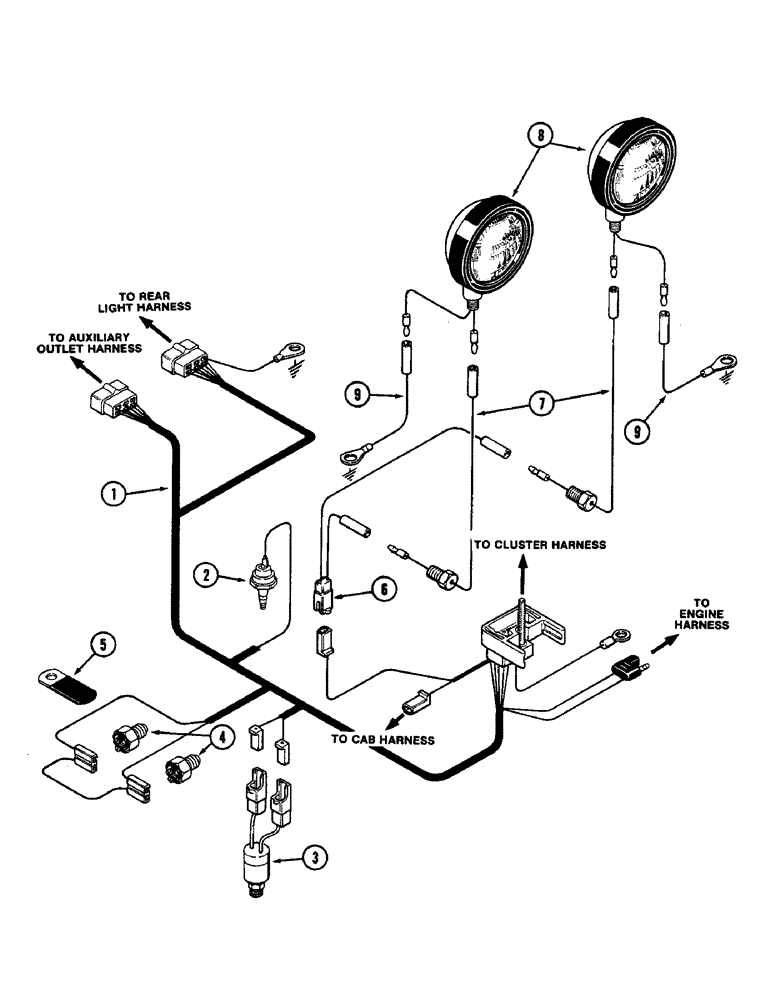

Схема запчастей Case IH 2090 - (4-082) - TRANSMISSION HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS
8
9
9
3
6
5
7
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A143367

HARNESS

- transmission

1шт.

2

A66737

SWITCH, PRESSURE

SWITCH - transmission filter pressure

1шт.

3

A162422

SWITCH

- transmission oil pressure

1шт.

4

A160237

SWITCH

- neutral start

2шт.

5

A37179

CLIP

- wire, neutral start

1шт.

6

A147345

HARNESS

- front floodlight

1шт.

7

A147346

HARNESS

WIRE -, Serial Range: harness-floodlight

2шт.

8

A145495

LAMP

FLOODLIGHT - front

2шт.

9

A147344

ELECTRICAL WIRE

WIRE - ground, floodlight

2шт.
