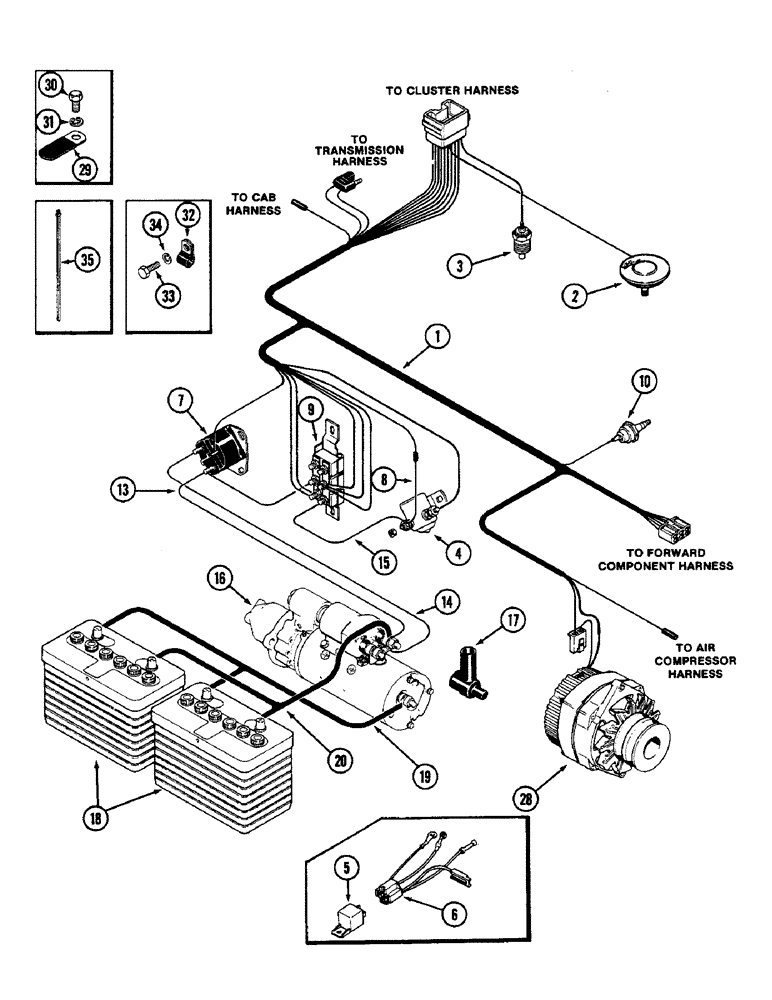

Запчасти Case IH 2090 (4-076) - ENGINE HARNESS, P.I.N. 8841101 THROUGH P.I.N. 8850030 (04) - ELECTRICAL SYSTEMS

1

A160584

HARNESS

- engine (Order A167436 and A167492)

1шт.

2

A154782

SWITCH

- air cleaner restriction, See Figure 2-12

1шт.

3

D65446

SENDER UNIT

SENDER - engine water temperature, See Figure 2-04

1шт.

4

REF

INSTRUCTION

SOLENOID - cab electrical (If equipped), See Figure 4-110

1шт.

5

A167627

RELAY

- cab electrical (If equipped) (Order A167492)

1шт.

6

A165316

HARNESS

- relay (If equipped)

1шт.

7

A39079

SOLENOID

- ignition, See Figure 4-110

1шт.

8

A160443

HARNESS

WIRE - cab solenoid, purple 6 inch (152 mm) long

1шт.

9

A147549

BREAKER

- circuit, 20 and 100 ampere, See Figure 4-110

1шт.

10

A66737

SWITCH, PRESSURE

SWITCH - engine oil pressure

1шт.

13

A147210

ELECTRICAL WIRE

WIRE - starter to solenoid (Battery terminal)

1шт.

14

A163000

ELECTRICAL WIRE

WIRE - starter to solenoid (Switch terminal) (Replaces A147209)

1шт.

15

A147208

WIRE - cab solenoid to circuit breaker, red 7 inch (178 mm) long

1шт.

16

REF

INSTRUCTION

STARTER, See Figure 4-116

1шт.

17

A153796

BOLT

COVER - starter terminal insulator

1шт.

18

REF

INSTRUCTION

BATTERY - 12 volt low maintenance, See Figure 4-112

2шт.

19

A149182

CABLE

- battery, negative, See Figure 4-112 (Order A162285)

1шт.

20

A149179

CABLE

- battery, positive, See Figure 4-112 (Order A162287)

1шт.

28

REF

INSTRUCTION

ALTERNATOR, See Figure 4-132

1шт.

29

A37179

CLIP

- wire, Serial Range: alternator-engine

1шт.

30

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

CLIP - wire, harness to front end casting

1шт.

33

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.
