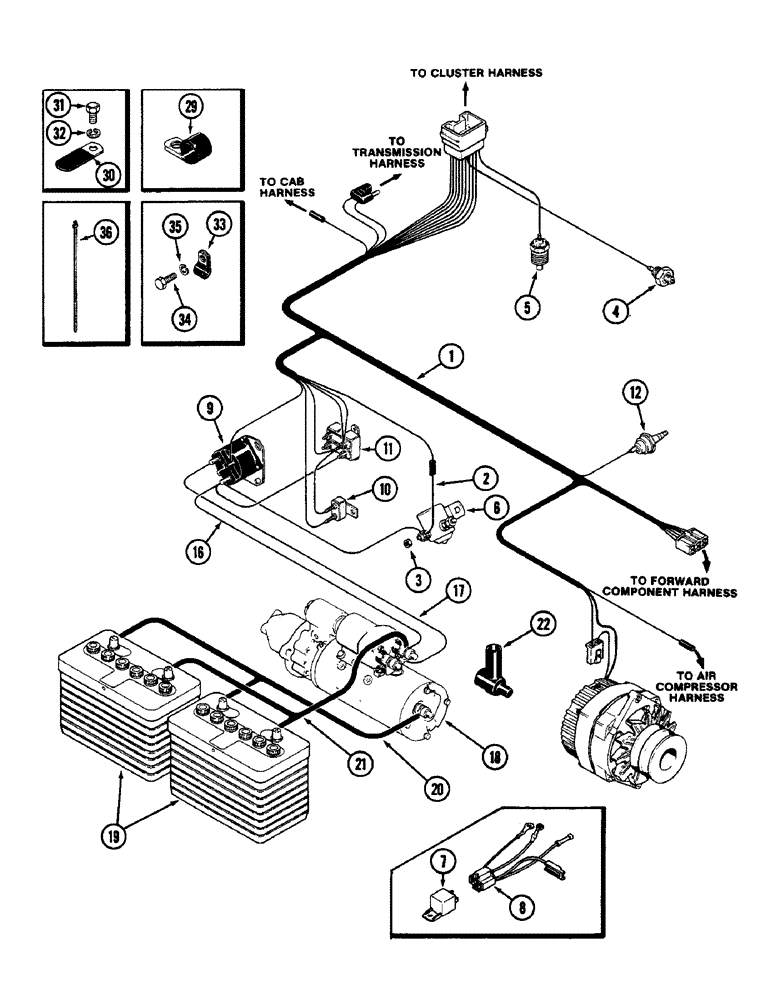

Запчасти Case IH 2090 (4-074) - ENGINE HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

1

A160460

HARNESS

ASSEMBLY - engine (Used with jumper wire)

1шт.

1

A147718

HARNESS

ASSEMBLY - engine (Used without jumper wire) (Order 1-A160460 harness, 1-A160443 cab solenoid wire and 1-193-1002 nut)

1шт.

2

A160443

HARNESS

WIRE - engine harness to cab solenoid

1шт.

3

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- Keps, no. 8-32

1шт.

4

A154782

SWITCH

- air restriction indicator, See Figure 2-12

1шт.

5

D65446

SENDER UNIT

SENDER - engine water temperature, See Figure 2-04

1шт.

6

REF

INSTRUCTION

SOLENOID - cab electrical (If equipped), See Figure 4-110

1шт.

7

A167627

RELAY

- cab electrical (If equipped) (Order A167492)

1шт.

8

A165316

HARNESS

- relay (If equipped)

1шт.

9

A39079

SOLENOID

- starter, See Figure 4-110

1шт.

10

A137775

BREAKER

- circuit, 20 amperes, See Figure 4-110

1шт.

11

A147004

BREAKER

- circuit, 100 amperes (See Figure 4-110)

1шт.

12

A66737

SWITCH, PRESSURE

SWITCH - engine oil pressure

1шт.

16

A147210

ELECTRICAL WIRE

WIRE - starter to solenoid (Battery terminal)

1шт.

17

A163000

ELECTRICAL WIRE

WIRE - starter to solenoid (Switch terminal) (Replaces A147209)

1шт.

18

REF

INSTRUCTION

STARTER, See Figure 4-116

1шт.

19

REF

INSTRUCTION

BATTERY - 12 volt, See Figure 4-112

2шт.

20

REF

INSTRUCTION

CABLE - battery, negative terminal, See Figure 4-112

1шт.

21

REF

INSTRUCTION

CABLE - battery, positive terminal, See Figure 4-112

1шт.

22

A153796

BOLT

COVER - starter terminal insulation

1шт.

28

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, See Figure 4-132

1шт.

29

A140589

CLAMP

- harness to torque tube

1шт.

30

A37179

CLIP

- alternator, Serial Range: wires-engine

1шт.

31

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

33

49845

CLAMP

CLIP - harness to front casting

2шт.

34

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.
