(4-070) - CLUSTER HARNESS, P.I.N. 8841101 AND AFTER

Запчасти Case IH 2090 (4-070) - CLUSTER HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS

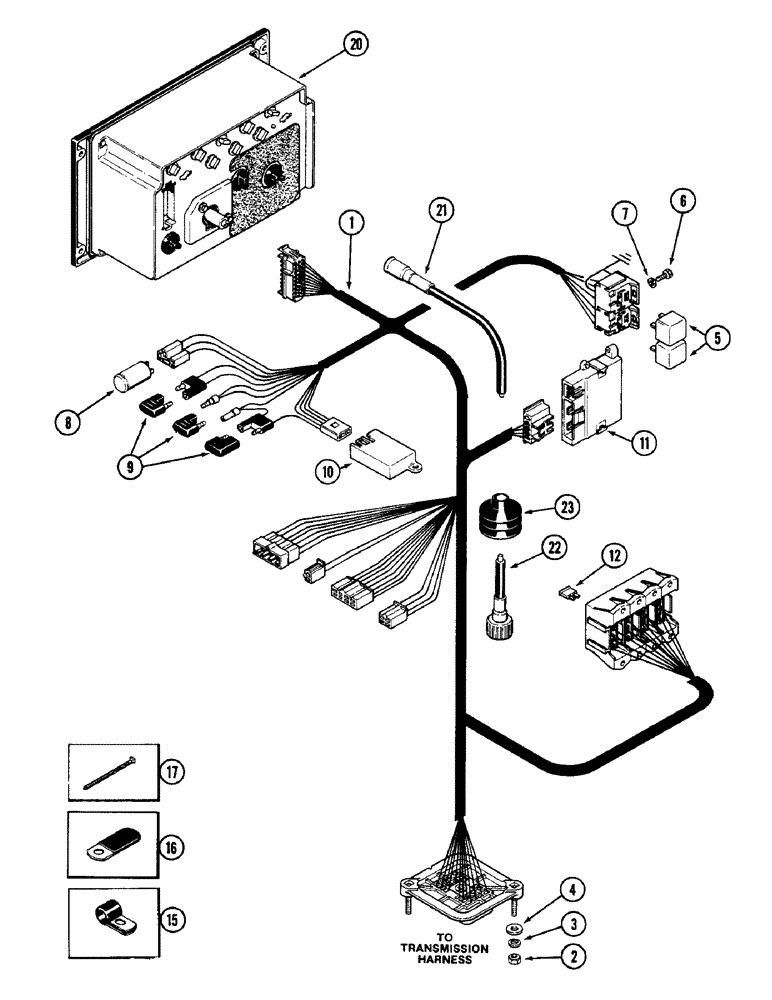

Схема запчастей Case IH 2090 - (4-070) - CLUSTER HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS
8
6
23
1
17
11
10
12
7
20
15
4
5
16
2
3
21
9
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A160561

HARNESS

ASSEMBLY - wire

1шт.

Ref #1 - Has (31) 739144C1 Male Clips, (31) 879558R1 Female Clips, & (2) 239807R1 Wide Male Clips. 02/12/96

1шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

5

A147176

RELAY

- lamp

2шт.

6

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- Phillips pan head, no. 10-24 x 3/4

2шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

8

A160116

RELAY

- time delay

1шт.

9

A147976

DIODE

- lamp check

3шт.

10

A162294

CONNECTOR, ELEC

MODULE - low coolant indicator (Replaces A147382), See Figure 4-106

1шт.

11

A167331

AMPLIFIER

MODULE - pyrometer (Replaces A154256)

1шт.

12

REF

INSTRUCTION

FUSE - blade delay, See Figure 4-072

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness

1шт.

16

A37179

CLIP

- harness

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

20

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument, See Figure 4-104

1шт.

21

A147207

CABLE

ASSEMBLY - tachometer drive, Includes: Ref. 22

1шт.

22

A24523

KIT

- inner cable

1шт.

23

A145931

BELLOWS

COVER - cable seal

1шт.
