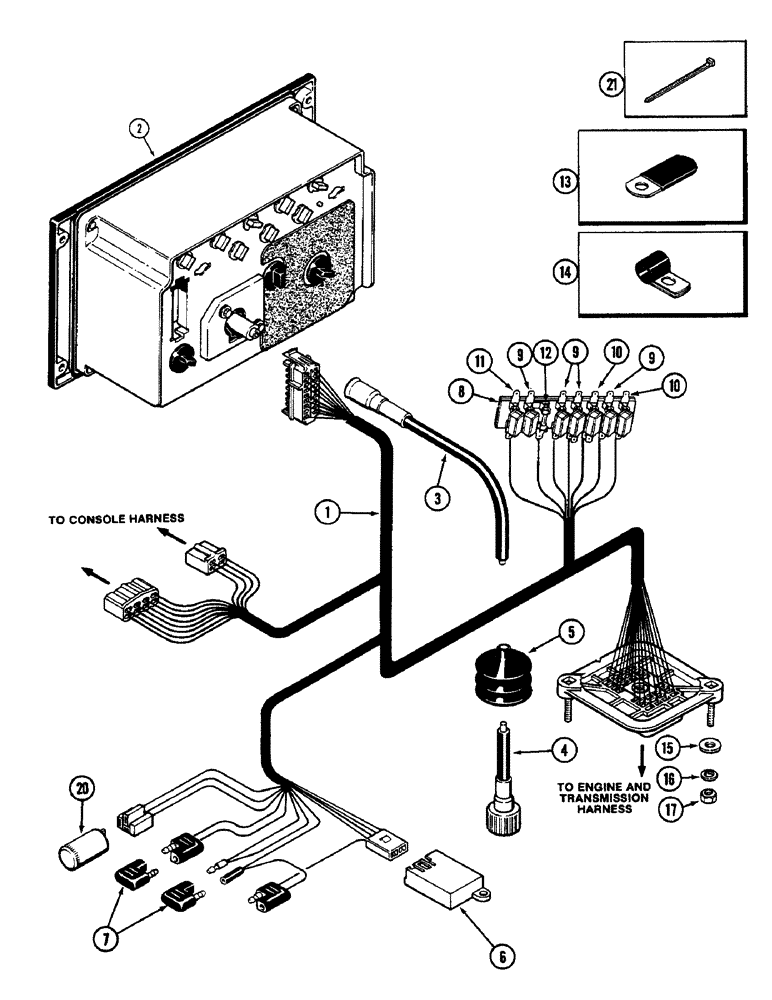

Запчасти Case IH 2090 (4-068) - CLUSTER HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

1

A147204

HARNESS

- instrument cluster

1шт.

2

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument, See Figure 4-102

1шт.

3

A147207

CABLE

ASSEMBLY - tachometer drive

1шт.

4

A24523

KIT

- drive cable replacement, Includes: tool

1шт.

5

A145931

BELLOWS

COVER - tachometer drive cable

1шт.

6

A147382

CONNECTOR, ELEC

MODULE - low coolant indicator, See Figure 4-106 (Order A162294)

1шт.

7

A147976

DIODE

- air cleaner, coolant level and lamp check

3шт.

8

A147180

HOLDER

- fuse, See Figure 4-106

1шт.

9

A141611

BREAKER

- circuit, 15 ampere (If equipped)

4шт.

9

223-15

FUSE,15 Amp, Type 3AG

- 15 ampere (If equipped)

4шт.

10

A141612

BREAKER

- circuit, 20 ampere (If equipped)

2шт.

10

223-27

FUSE,20 Amp, Type 3AG

- 20 ampere (If equipped)

2шт.

11

A141614

BREAKER

- circuit, 30 ampere (If equipped)

1шт.

11

223-31

FUSE,10 Amp, Type 3AG

- 30 ampere (If equipped)

1шт.

12

223-26

FUSE,5 Amp, Type 3AG

- 5 ampere

1шт.

13

A37179

CLIP

-, Serial Range: harness-floorboard

1шт.

14

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness to steering support

1шт.

15

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

20

A160116

RELAY

- time delay

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
