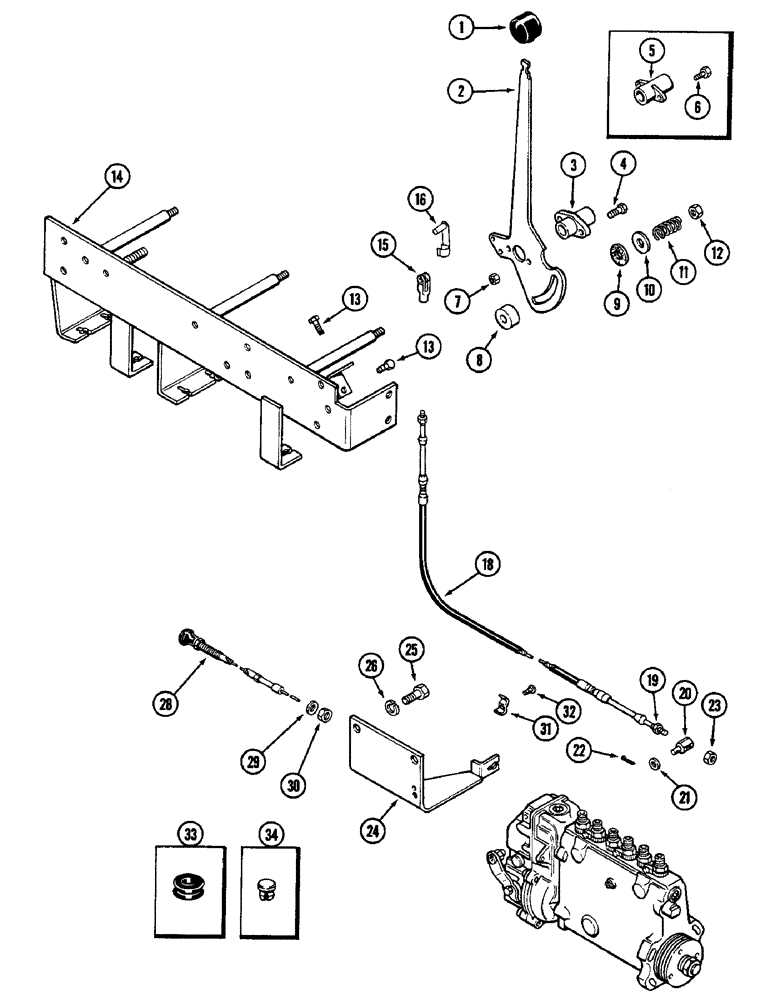

Запчасти Case IH 2090 (3-58) - THROTTLE CONTROL, 504BD DIESEL ENGINE, PRIOR TO P.I.N. 9922050 (03) - FUEL SYSTEM

1

A139945

KNOB

- throttle lever

1шт.

2

A141390

LEVER

- han, throttle control

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - pivot, hand lever (Replaced A141371)

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used with A160500 bearing Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

5

A141371

BEARING

- pivot, hand lever (Order A160500)

1шт.

6

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Use with A141371 bearing Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

A160622

BUSHING

SPACER - lever

1шт.

9

A61069

DISC

- friction

1шт.

10

195-2035

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 5/64 inch (11 x 32 x 2 mm)

1шт.

11

A65583

SPRING

- friction disc pressure

1шт.

12

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex lock, 3/8 inch NC

2шт.

13

A67294

BOLT

- lock, lever adjustment

2шт.

14

REF

INSTRUCTION

SUPPORT - console control

1шт.

15

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - control cable to lever (Replaces A141286)

1шт.

16

A149683

PIN

- spring

1шт.

18

A67296

CABLE

ASSEMBLY - control

1шт.

19

129-315

NUT,#10-32, LH

2шт.

20

A63014

PIVOT

- control cable to pump arm

1шт.

21

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

22

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

23

193-1000

NUT,Keps, w/LW,#10-32

- hex Keps, no. 10-32

1шт.

24

A67297

BRACKET

SUPPORT - throttle end stop controls

1шт.

25

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

- hex, 3/8 NC x 1 inch

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

28

A143982

CABLE

- stop control, fuel pump

1шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

30

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

31

B51765

CLIP

- stop, Serial Range: control-support

1шт.

32

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head, no. 8-24 x 1 inch

1шт.

33

A141389

GROMMET

- control cables

2шт.

34

A67295

PLUG

- control cables, 7/16 inch ID (11 mm)

1шт.

34

A162961

PLUG

- control cables, 11/16 inch ID (17 mm)

1шт.
