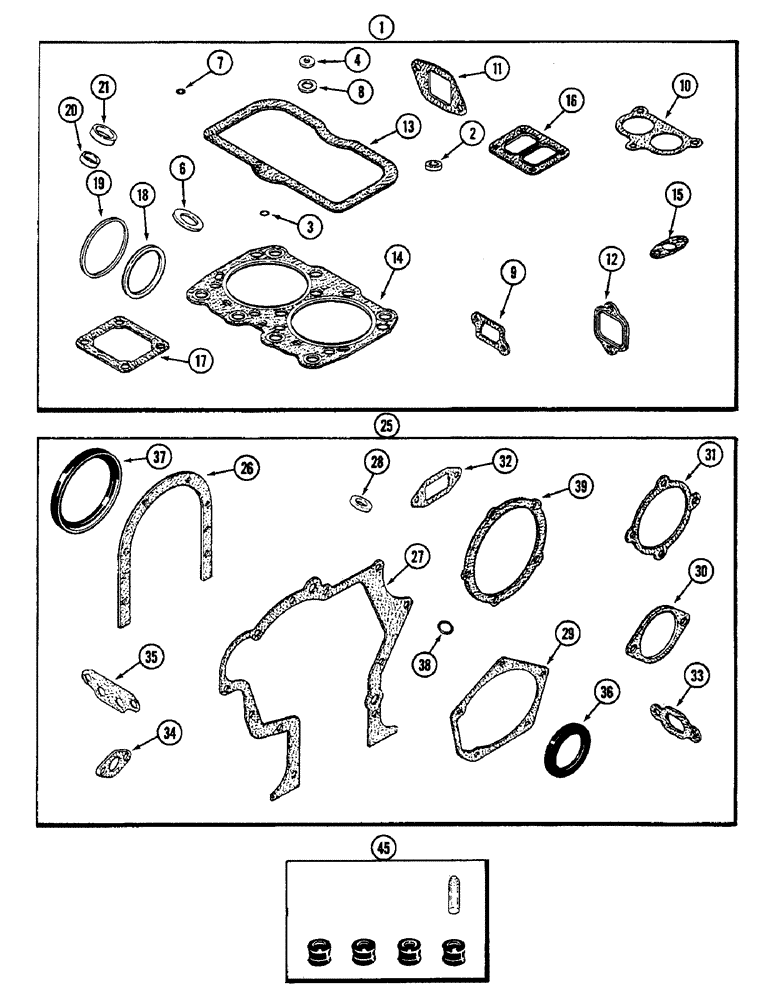

Запчасти Case IH 2090 (2-44) - ENGINE GASKET KITS, 504BD DIESEL ENGINE, VALVE GRIND (02) - ENGINE

1

A157300

GASKET

KIT - valve grind (Replaces A151404), Includes: Ref. 2 - 21

1шт.

For complete engine overhaul, order 1-A157300, 1-A44075, 3-M20614 and 1-A152479 from Figure 2-42.

1шт.

2

A142098

GROMMET

- valve cover stud (Replaces A23684)

6шт.

3

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker arm shaft tube, 3/16 x 5/16 x 1/16 inch (5 x 8 x 2 mm)

3шт.

4

A34133

GASKET

- breather screw, 9/32 x 1/2 x 3/64 inch (7 x 13 x 1 mm)

1шт.

6

A76640

GASKET

WASHER - nozzle

6шт.

7

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem, See Ref. 45

12шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube to cover, 11/16 x 1-1/4 x 1/4 inch (17 x 32 x 6 mm)

3шт.

9

A166147

GASKET

- water manifold (Replaces A58637)

3шт.

10

A166148

GASKET

- thermostat housing (Replaces A58639)

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A140252

MANIFOLD GASKET

- exhaust manifold (Order A58895)

6шт.

13

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover (Replaces A65734)

3шт.

14

A138397

CYLINDER HEAD GASKET

GHASKET - cylinder head

3шт.

15

A58892

GASKET,1.59mm Thk

- oil drain tube, turbocharger

1шт.

16

A58899

GASKET,0.45mm Thk

- turbocharger base

2шт.

17

A58910

GASKET

- air intake elbow

1шт.

18

A138817

RING,2.64mm Thk

SEAL - exhaust manifold (Not used this application)

1шт.

19

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

20

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon, nozzle tip (Not used this application)

6шт.

21

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

SEAL - carbon, nozzle tip (Not used this application)

6шт.

25

A44075

GASKET KIT

- cylinder block, Includes: Ref. 26 - 45

1шт.

For complete engine overhaul, order 1-A157300, 1-A44075, 3-M20614 and 1-A152479 from Figure 2-42.

1шт.

26

A32830

GASKET

- rear seal retainer, cylinder block

1шт.

27

A58612

GASKET

- timing gear cover, cylinder block

1шт.

28

A58613

SEALING WASHER

GASKET - timing window plug, cylinder block

1шт.

29

A58615

GASKET

- fuel pump cover, cylinder block

1шт.

30

A58617

GASKET

- auxiliary drive cover (Not used this application), cylinder block

1шт.

31

A58646

GASKET

- water pump to body, cylinder block

1шт.

32

A58649

GASKET

- water pump body to block, cylinder

1шт.

33

A58670

GASKET

- oil cooler water opening, cylinder block

1шт.

34

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump (Not used this application), cylinder block

1шт.

35

A58756

OIL PAN GASKET SET

- oil filter base (Not used this application), cylinder block

1шт.

36

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front (Replaces A62049), cylinder block

1шт.

37

A62050

OIL SEAL

- oil, crankshaft, rear, 4-3/4 x 5-3/4 x 1/2 inch (121 x 146 x 13 mm), cylinder block

1шт.

38

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter bore and oil pump, 59/64 x 1-1/8 x 7/64 inch (23 x 29 x 3 mm), cylinder block

1шт.

39

A76656

GASKET

- water pump body (Not used this application), cylinder block

1шт.

45

M20614

SEAL KIT

- valve sal, Includes: 4 seals and tool, cylinder block

3шт.
