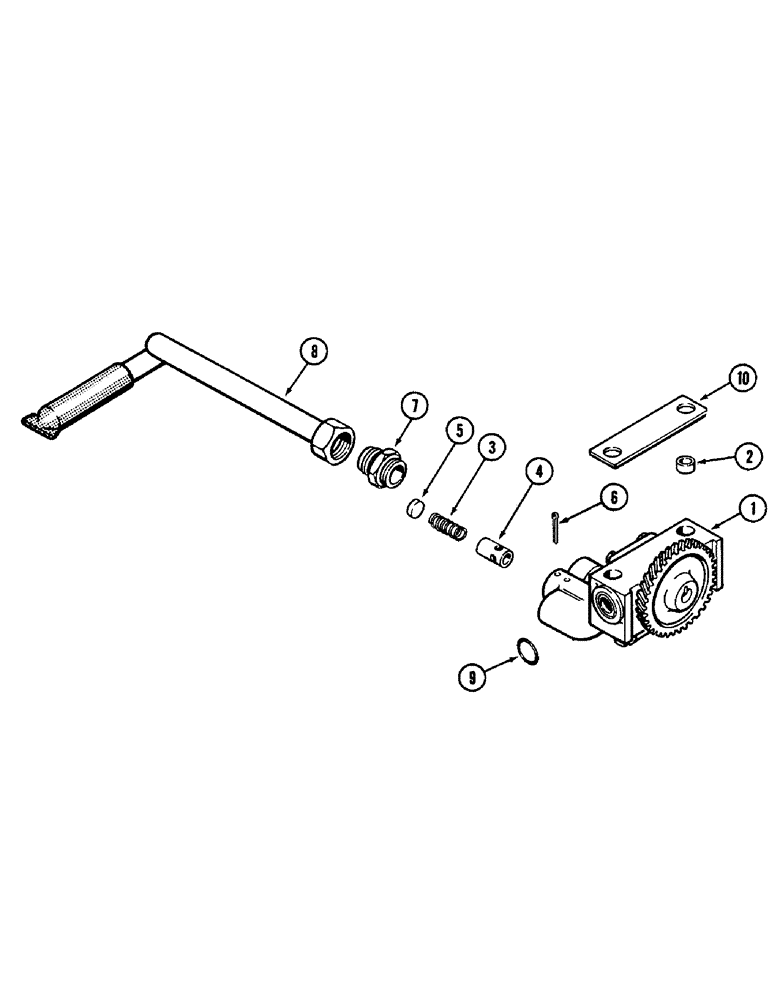

Запчасти Case IH 2090 (2-40) - OIL PUMP, 504BD DIESEL ENGINE (02) - ENGINE

1

A153805

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, Includes: Ref. 2 - 6

1шт.

2

A58915

SLEEVE

-, Serial Range: pump-block

1шт.

3

A155980

SPRING

- relief valve 11/16 OD x 2 inch free length (17 x 51 mm) (Replaced A59111 and A151960)

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- bore hole type, 11/16 inch (18 mm)

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), (2 x 38 mm) 3/32" x 1 1/2"

1шт.

7

A142004

CONNECTOR, ELEC

CONNECTOR - suction, Serial Range: tube-pump

1шт.

8

A142449

TUBE

- oil suction, Includes: screw

1шт.

9

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil port, 59/64 x 1-1/8 x 7/64 inch (23 x 28 x 3 mm)

1шт.

10

A58859

SHIM,.005" Thk

Oil pump to block (0.127 mm) .005" Thk

1шт.
