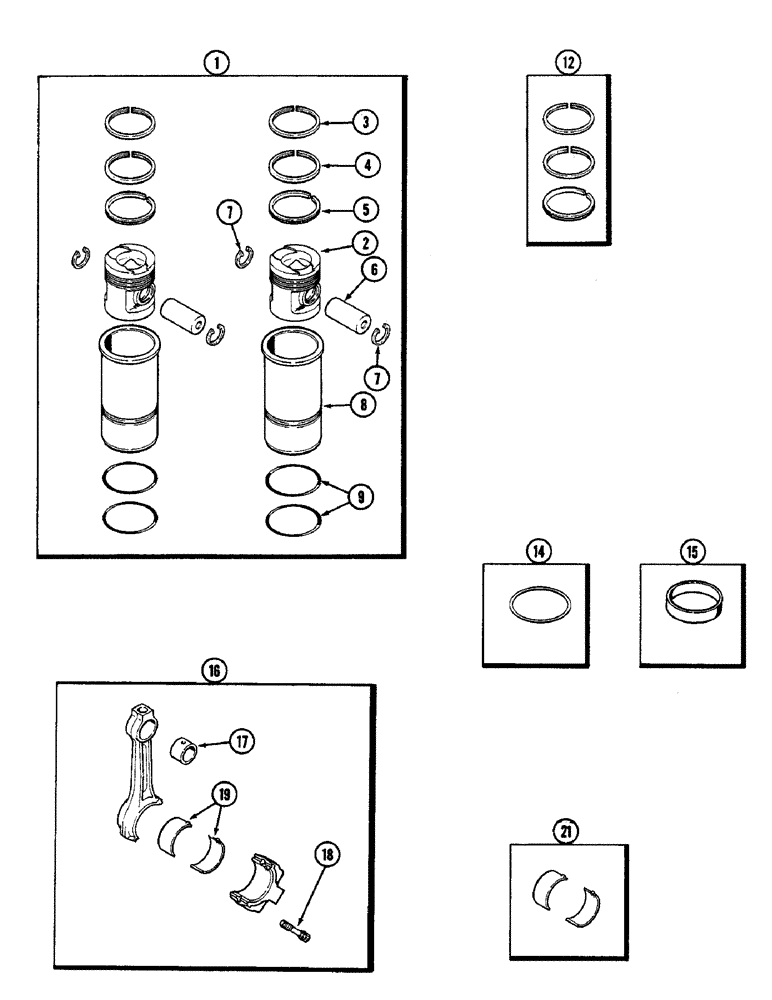

Запчасти Case IH 2090 (2-36) - PISTON ASSEMBLY, WITH TWO GROOVE SLEEVE, 504BD DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

PISTON AND SLEEVE ASSEMBLY KIT - (Set of 2) (Order A166135, See Figure 2-38), Includes: Ref. 2 - 9

3шт.

2

A166122

PISTON

PISTON - cylinder 4-5/8 inch bore (117 mm) (Aluminum)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (Top groove) (Order Ref. 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (Second groove) (Order Ref. 12)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Bottom groove) (Order Ref. 12)

2шт.

6

A140607

PISTON PIN,41.27mm OD x 93.34mm L

PIN - piston (Order Ref. 13)

2шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston 1.625", Int, #162

4шт.

8

REF

INSTRUCTION

SLEEVE - piston (Cylinder liner) (Order 1-A153638 and 3-A144667)

2шт.

9

A146616

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

O-RING - piston sleeve

4шт.

12

A48320

SET

RING KIT - replacement (Set of 1) (Replaces A44060)

6шт.

14

A148554

SHIM

SHIM - sleeve, 0.005 inch (0.127 mm)

1шт.

14

A148553

SHIM

SHIM - sleeve, 0.010 inch (0.254 mm)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs only)

1шт.

16

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 17 & 18

6шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

6шт.

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

6шт.

17

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

BUSHING - piston pin, connecting rods

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap, connecting rods

2шт.

19

NSS

NOT SOLD SEPARAT

LINER - bearing, connecting rod (Order Ref. 21)

12шт.

21

A43173

BEARING LINER

LINERS - rod bearing (Set of 2) standard, connecting

6шт.

21

A43174

BEARING LINER

LINERS - rod bearing (Set of 2) 0.002 inch undersize (0.051 mm), connecting

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

LINERS - rod bearing (Set of 2) 0.010 inch undersize (0.254 mm), connecting

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

LINERS - rod bearing (Set of 2) 0.020 inch undersize (0.508 mm), connecting

6шт.

21

A43177

BEARING LINER

LINERS - rod bearing (Set of 2) 0.030 inch undersize (0.762 mm), connecting

6шт.
