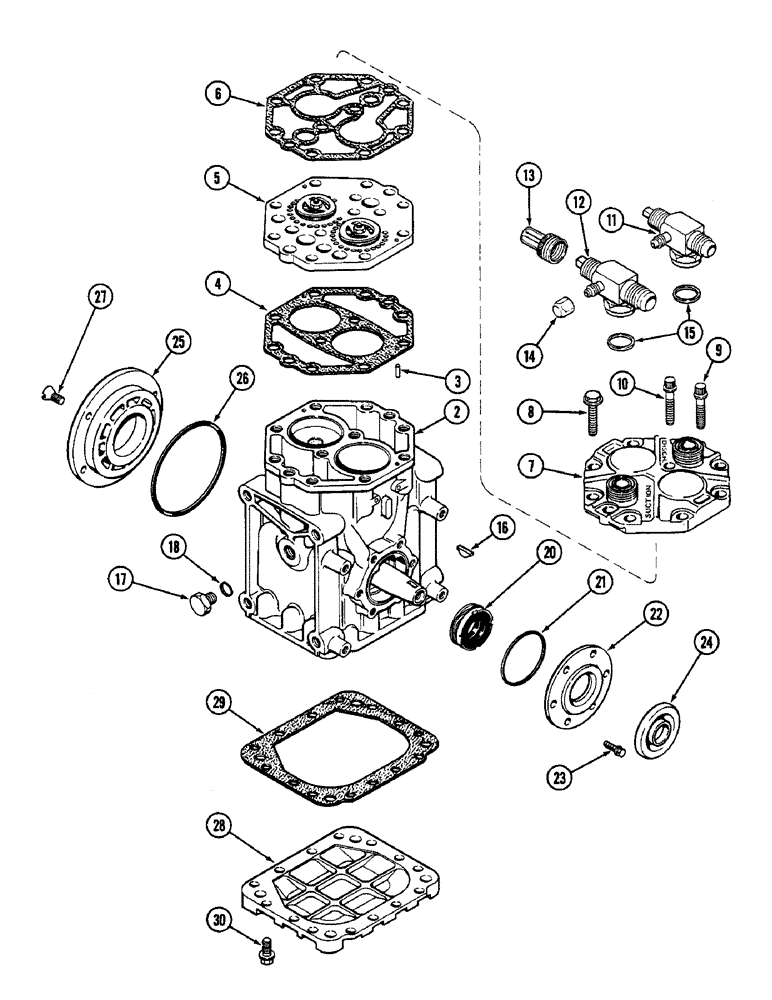

Запчасти Case IH 2090 (9-618) - AIR CONDITIONING, AIR COMPRESSOR (09) - CHASSIS/ATTACHMENTS

A141060

COMPRESSOR

COMPRESSOR ASSEMBLY - (York no. ER210L-20126T)

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE - compressor

1шт.

3

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, 1/8" x 11/16", Slotted

1шт.

A45420

VALVE

VALVE PLATE KIT, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - valve plate to crankcase (See A42964)

1шт.

Part of Gasket Kit, P/N A42964

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve (Order A45420)

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cylinder head to valve plate (See A42964)

1шт.

Part of Gasket Kit, P/N A42964

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

8

A42949

FLANGE BOLT

BOLT - hex washer head, 5/16 NC x 1-3/8 inch

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - Ferry head, 12 point cap, 5/16 NC x 1-3/8 inch

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

SCREW - Ferry head, 12 point cap, 5/16 NC x 1-17/32 inch

2шт.

11

A42936

VALVE

VALVE ASSEMBLY - roto lock, discharge (1/2 inch port), Includes: Ref. 13 & 14

1шт.

12

A42937

VALVE

VALVE ASSEMBLY - roto lock, suction (5/8 inch port), Includes: Ref. 13 & 14

1шт.

13

A42944

CAP

CAP - sleeve, valve stem

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - valve stem

2шт.

15

A42938

GASKET

GASKET - roto lock to cylinder head

2шт.

16

A42939

KEY

KEY - crankshaft, no. 6 nonrok

1шт.

17

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

BOLT - hex, 3/8 NF x 1/2 inch, crankcase oil plug

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - filter and level plug (Order A42964)

2шт.

Part of Gasket Kit, P/N A42964

1шт.

A48248

SEAL

SEAL KIT - front crankcase (Replaces A42960), Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankcase

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - plate (Order A42964 kit)

1шт.

Part of Gasket Kit, P/N A42964

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - seal retaining

1шт.

23

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT - hex washer head, no. 10-24 x 7/16 inch

6шт.

24

A42965

CAP

CAP - dust, crankcase oil seal

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - crankcase, rear

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - rear housing (Order A42964)

1шт.

Part of Gasket Kit, P/N A42964

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - rear, Serial Range: housing-crankcase

4шт.

28

NSS

NOT SOLD SEPARAT

PLATE - crankcase base

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - base plate (Order A42964)

1шт.

Part of Gasket Kit, P/N A42964

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - base, Serial Range: plate-crankcase

12шт.

A42964

GASKET

GASKET KIT - complete overhaul, Includes: Ref. 4, 6, 18, 21, 26, 29

1шт.
