(9-612) - CAB, HEADLINER NOISE PADS WITH RADIO, PRIOR TO CAB SERIAL NUMBER 12045751

Запчасти Case IH 2090 (9-612) - CAB, HEADLINER NOISE PADS WITH RADIO, PRIOR TO CAB SERIAL NUMBER 12045751 (09) - CHASSIS/ATTACHMENTS

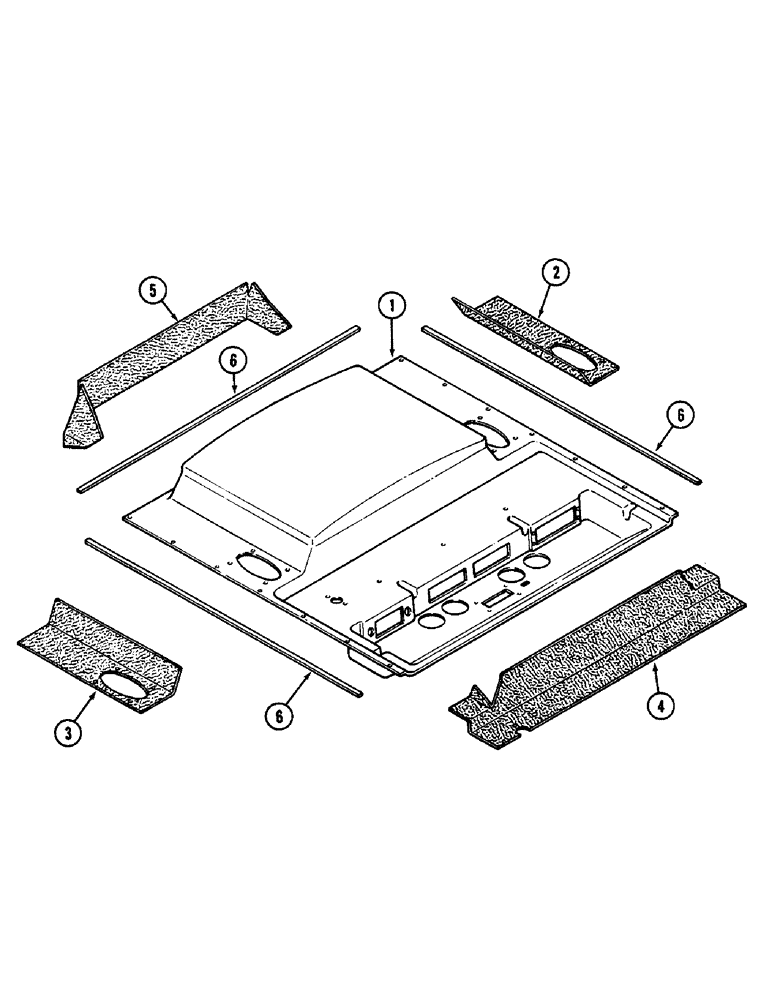

Схема запчастей Case IH 2090 - (9-612) - CAB, HEADLINER NOISE PADS WITH RADIO, PRIOR TO CAB SERIAL NUMBER 12045751 (09) - CHASSIS/ATTACHMENTS
1
6
4
2
3
6
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEADLINER - cab, See Figure 9-522

1шт.

2

F64245

PAD

- noise damping, left

1шт.

3

F64246

PAD

- noise damping, right

1шт.

4

F64477

PAD

- noise damping, front

1шт.

5

F64248

PAD

- damping, rear

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer edge, 44 inch (1118 mm) (Order F64119)

3шт.

F64119

SEALING STRIP

SEAL - 100 ft roll (30 M)

1шт.
