Запчасти Case IH 2090 (9-610) - CAB, FENDER MOUNTED RADIO (09) - CHASSIS/ATTACHMENTS

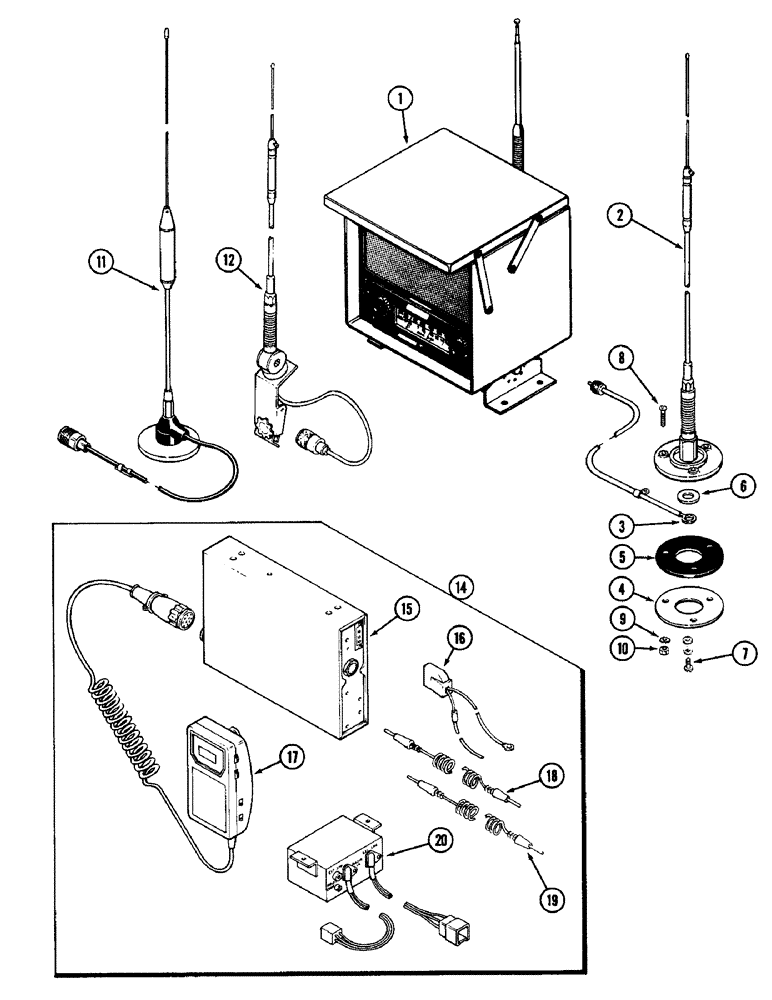

Схема запчастей Case IH 2090 - (9-610) - CAB, FENDER MOUNTED RADIO (09) - CHASSIS/ATTACHMENTS
1
12
15
20
11
17
19
4
14
5
7
9
10
16
18
6
3
8
2

Артикул

Название

Примечание

Количество

1

A164225

RADIO

- AM, FM (With antenna)

1шт.

2

A149939

ANTENNA

MAST ASSEMBLY - CB radio antenna (Base mounted), Includes: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

CABLE - antenna, radio

1шт.

4

NSS

NOT SOLD SEPARAT

BASE - antenna, radio

1шт.

5

NSS

NOT SOLD SEPARAT

FLANGE - insulator, radio antenna

1шт.

6

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64 inch (6 x 13 x 1 mm), radio antenna

1шт.

7

182-525

SCREW,Sl Pan Hd, #10 - 32 x 3/8"

- round slotted head, no. 10-32 x 3/8 inch, radio antenna

1шт.

8

182-538

SCREW,Slotted Pan Hd, #10-32 x 1"

- round slotted head, no. 10-32 x 1 inch, radio antenna

3шт.

9

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, , Radio antenna Ext Tooth, #10

2шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- hex Sems, no. 10-32, radio antenna

4шт.

11

A147274

ANTENNA - CB magnetic mounting, radio

1шт.

12

A162517

ANTENNA

- CB radio (Roof gutter mounted)

1шт.

14

A162520

CONTROL KIT - CB radio, attachment kit

1шт.

Used on tractors equipped with radio only.

1шт.

15

NSS

NOT SOLD SEPARAT

UNIT - CB radio transceiver, attachment kit

1шт.

16

NSS

NOT SOLD SEPARAT

HARNESS - transceiver, CB radio attachment kit

1шт.

17

NSS

NOT SOLD SEPARAT

MICROPHONE - CB transmitting, radio attachment kit

1шт.

18

NSS

NOT SOLD SEPARAT

WIRE - relay control, 3/32 inch diameter plug-in (2 mm), CB radio attachment kit

1шт.

19

NSS

NOT SOLD SEPARAT

WIRE - output, 9/64 inch diameter plug-in (3 mm), CB radio attachment kit

1шт.

20

NSS

NOT SOLD SEPARAT

RELAY - control box, CB radio attachment kit

1шт.

Выбрано товаров: 20
