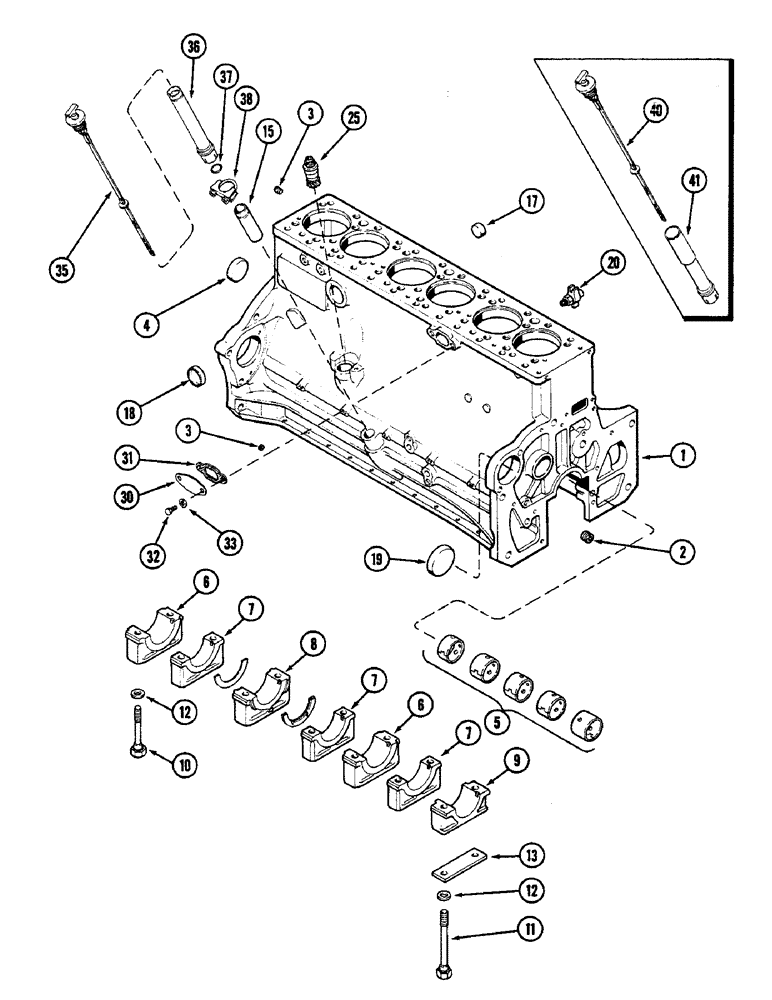

Запчасти Case IH 2090 (2-32) - CYLINDER BLOCK, 504BD DIESEL ENGINE (02) - ENGINE

A153934

CRANKCASE

BLOCK ASSEMBLY - short, Includes: Ref. 1 - 20 and stripped block, pistons, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters

1шт.

1

A46002

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting no. A66526), Includes: Ref. 2 - 20

1шт.

1

AR77832

REMAN-BASIC ENGINE

Remanufactured

1шт.

1

AC77832

CORE-BASIC ENGINE

Return Number

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - hex socket head, oil gallery, 3/8 inch PT

4шт.

3

221-1849

PLUG

PLUG - hex socket head, oil gallery, 1/8 inch PT

6шт.

4

A24361

PLUG

PLUG - cup, camshaft hole, 2-3/8 inch (60 mm)

1шт.

5

REF

INSTRUCTION

BUSHING - camshaft, See Figure 2-30

1шт.

6

A154391

CAP

CAP - main bearing, wide (Replaces A58783)

2шт.

7

A154390

CAP

CAP - main bearing, narrow (Replaces A58784)

3шт.

8

A154392

CAP

CAP - main bearing, thrust (Replaces A58785)

1шт.

9

A154389

CAP

CAP - main bearing, front (Replaces A58782)

1шт.

10

A66948

STEP BOLT

BOLT - hex special, 5/8 NC x 4-15/16 inch

12шт.

11

A66949

STEP BOLT

BOLT - hex special, 5/8 NC x 7-3/16 inch

2шт.

12

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 3/16 inch (16 x 25 x 5 mm)

14шт.

13

A58859

SHIM,.005" Thk

SHIM, , Oil pump to brg. cap (0.14 mm) .005" Thk

1шт.

15

A34540

TUBE

TUBE - oil filter and dipstick

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup, left side and rear, 1-3/8 inch (35 mm)

3шт.

18

A58569

PLUG,Cup, 2", Stainless

PLUG - cup, right side heater hole, 2 inch cup (51 mm)

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

PLUG - cup, 3-1/4 inch cup (83 mm)

1шт.

20

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

25

A67178

DRIVE

DRIVE ASSEMBLY - tachometer

1шт.

30

A58851

PLATE

PLATE - oil cooler water opening

1шт.

31

A58670

GASKET

GASKET - plate

1шт.

32

113-490

BOLT,Hex, 1/2" - 13 x 7/8", Gr 8, Full Thd

BOLT, Hex, 1/2"-13 x 7/8", G8, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

35

A151312

DIPSTICK

DIPSTICK - oil level, See Ref. 40

1шт.

36

A65778

TUBE

TUBE - extension, dipstick, See Ref. 41

1шт.

37

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING - tube seal, 1-1/8 x 1-3/8 x 1/8 inch (29 x 35 x 3 mm)

1шт.

38

L47766

CLAMP

CLAMP - tube

1шт.

40

A154241

DIPSTICK

DIPSTICK - oil level, large mouth

1шт.

41

A153835

TUBE

TUBE - extension, large mouth

1шт.
