Запчасти Case IH 2090 (9-598) - CAB, AIR CONDITIONING EVAPORATOR, CAB SERIAL NUMBER 12023102 AND AFTER (09) - CHASSIS/ATTACHMENTS

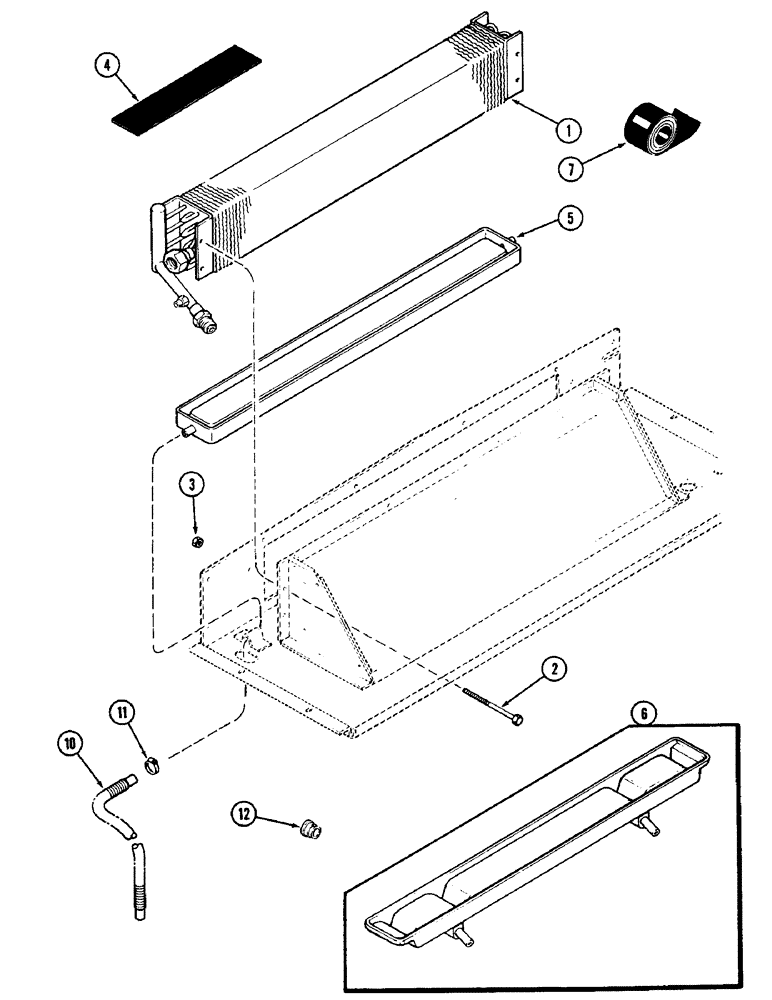

Схема запчастей Case IH 2090 - (9-598) - CAB, AIR CONDITIONING EVAPORATOR, CAB SERIAL NUMBER 12023102 AND AFTER (09) - CHASSIS/ATTACHMENTS
6
4
5
1
10
2
11
7
12
3

Артикул

Название

Примечание

Количество

1

F63870

EVAPORATOR

- evaporator

1шт.

2

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex, 1/4 NC x 4 inch

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

4

345-37

TAPE

- cork, core insulator, 2-1/2 x 12 x 1/8 inch (63 x 305 x 3 mm)

3шт.

5

F64487

PAN

- condensation (Cab serial no. 12045751 and after)

1шт.

6

F64529

PAN

- condensation (Prior to cab serial no. 12045751)

1шт.

7

A42902

SEALING STRIP

INSULATION - press on 2-1/2 inch (63 mm) wide 30 ft (9 M) long

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - drain, corrugated, 90 inch (2286 mm) long (Order F64508)

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

- corrugated 0.43" ID x 100' Bulk

1шт.

11

214-300

CLAMP

- hose, 7/16 to 9/16 inch

2шт.

12

F64504

BUSHING

-, Serial Range: hose-post

2шт.

Выбрано товаров: 11
