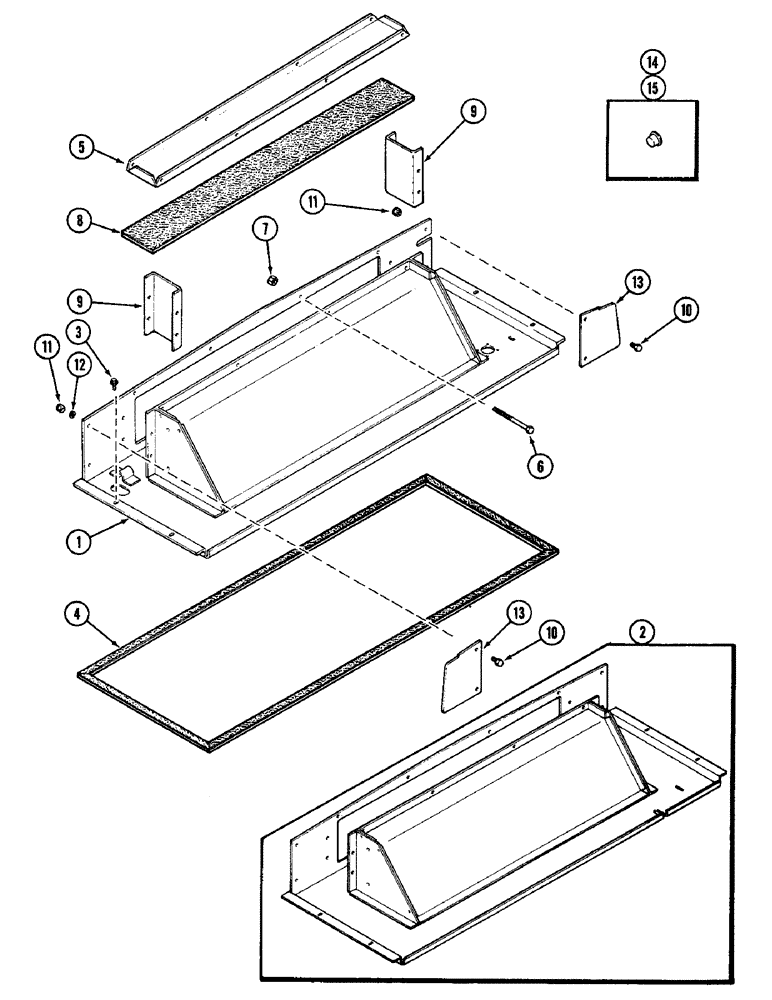

Запчасти Case IH 2090 (9-592) - CAB, PLENUM (09) - CHASSIS/ATTACHMENTS

1

F98173

DUCT

CHANNEL - air passage (Cab serial no. 12045751 and after)

1шт.

2

F98250

CHANNEL

- air passage (Replaces F98237) (Prior to cab serial no. 12045751)

1шт.

3

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - washer head self-tapping, no. 10-16 x 1/2 inch

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL - tube, floor 111-1/2 inch (2832 mm) (Order F64119)

1шт.

F64119

SEALING STRIP

SEAL - 100' roll (30 M) (Cut to desired length)

1шт.

5

F63841

COVER

- top, air duct

1шт.

6

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex, 1/4 NC x 4 inch

8шт.

7

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

8шт.

8

F63671

SEAL

- top cover

1шт.

9

F63614

PLATE ASSY.

PLATE - filler, air tube side

2шт.

10

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

13

F64013

PLATE ASSY.

PLATE - end, air tube (Without air conditioning)

1шт.

14

353-3

PLUG,Cap, .302" OD

- plastic, 5/16 inch hole (8 mm) (Without heater)

4шт.

15

353-14

PLUG,Cap, .787" OD

- plastic, 13/16 inch hole (21 mm) (Without heater)

2шт.
