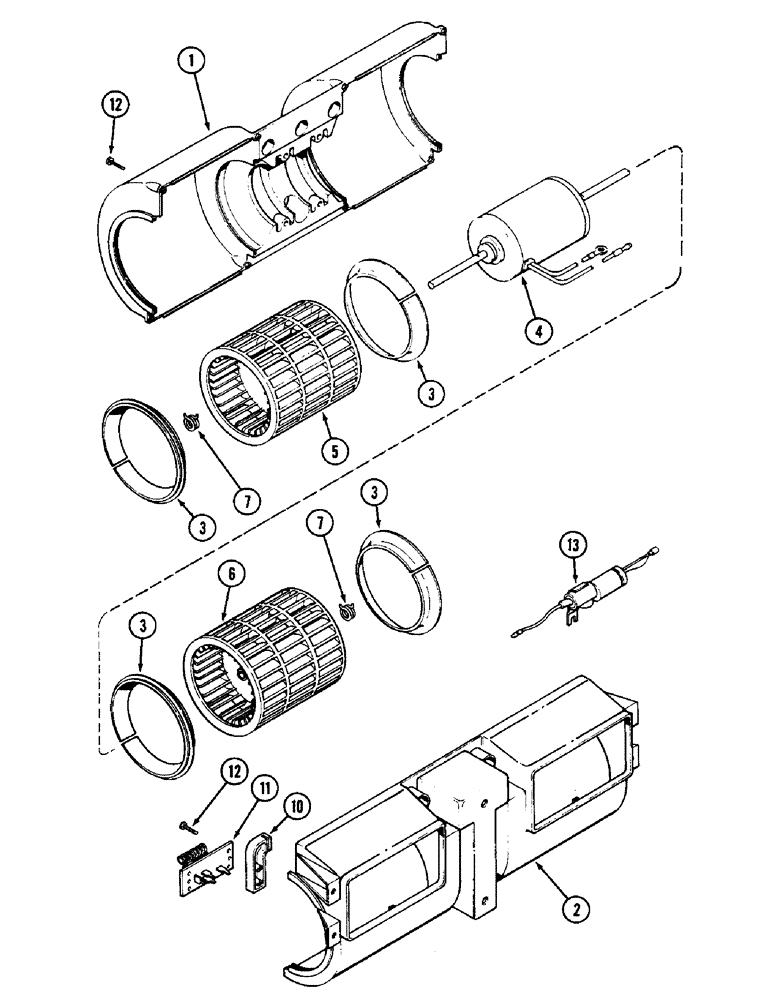

Запчасти Case IH 2090 (9-590) - CAB, BLOWER ASSEMBLY, WITH 5 INCH (127 MM) WIDE FAN (09) - CHASSIS/ATTACHMENTS

1

F64741

HOUSING

- blower fan, lower

1шт.

2

F64740

HOUSING

- blower fan, upper

1шт.

3

F64739

RING

- blower housing

4шт.

4

F42775

MOTOR, ELECTRIC

MOTOR - blower (Order F96901)

1шт.

5

F45020

BLOWER,Fan, RH

FAN - blower, right, 4-1/2 diameter x 5 inch wide (114 x 127 mm)

1шт.

6

F45021

BLOWER,Fan

FAN - blower, left, 4-1/2 diameter x 5 inch wide (114 x 127 mm)

1шт.

7

F44948

SPRING

- fan lock

2шт.

10

F64742

BRACKET

- resistor mounting

1шт.

11

F44900

RESISTOR

- blower

1шт.

12

187-1111

SCREW

- no. 8-32 x 3/4 inch

14шт.

13

F64184

CAPACITOR

- radio noise

1шт.
