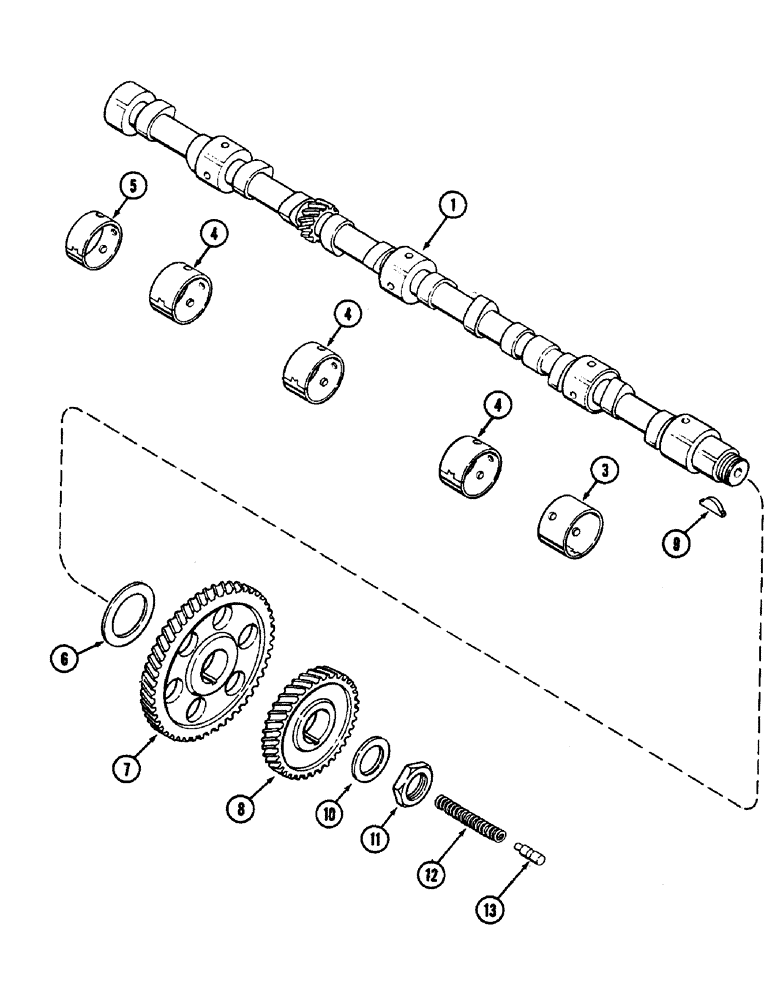

Запчасти Case IH 2090 (2-30) - CAMSHAFT, 504BD DIESEL ENGINE (02) - ENGINE

1

A66124

CAMSHAFT

- engine

1шт.

3

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- camshaft, front

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- camshaft, intermediate

3шт.

5

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- camshaft, rear

1шт.

6

A21017

WASHER

- camshaft thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idle drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - 5/16 x 1-5/16 inch (8 x 33 mm)

1шт.

10

A31038

THRUST WASHER

- lock, camshaft nut

1шт.

11

A58595

NUT

- camshaft

1шт.

12

P0027853A

LARGE PIN

- plunger, camshaft thrust

1шт.

13

A27852

PLUNGER

- thrust, camshaft

1шт.
