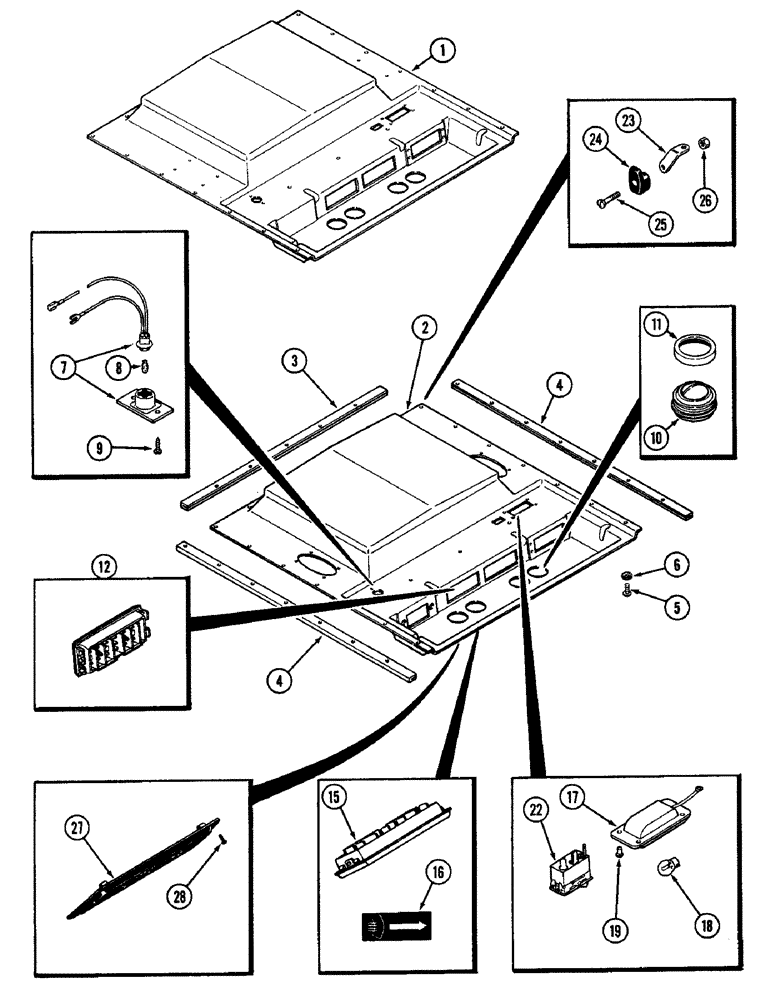

Запчасти Case IH 2090 (9-580) - CAB, HEADLINER AND LOUVERS, CAB SERIAL NUMBER 12008153 THROUGH 12045750 (09) - CHASSIS/ATTACHMENTS

1

F64314

LINING

HEADLINER - cab (Without radio)

1шт.

2

F64244

LINING

HEADLINER - cab (With radio)

1шт.

3

F63799

MOLDING

MOULDING - rear, headliner

1шт.

4

F63800

MOLDING

MOULDING - side, headliner

2шт.

5

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - Phillips, self-tapping, no. 10-16 x 3/4 inch

2шт.

6

F64315

WASHER

- finishing

22шт.

7

F98171

LAMP

ASSEMBLY - courtesy, Includes: Ref. 8

1шт.

8

D71346

TAIL LAMP,12V

BULB - lamp, no. 168

1шт.

9

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - Phillips, self-tapping, no. 10-24 x 1/2 inch

2шт.

10

F64132

GUARD

LOUVER - air deflection, ball type

4шт.

11

F64131

RING

- retainer, louver

4шт.

12

L109555

GUARD

LOUVER - air deflection, rectangle (Replaces F89948)

2шт.

15

F98149

GUARD

LOUVER - defroster

1шт.

16

321-3842

DECAL

- defroster

1шт.

17

F89772

LAMP

ASSEMBLY - dome, Includes: Ref. 18

1шт.

18

B50217

BULB

- lamp, no. 93

1шт.

19

151-526

RIVET,Pop, 1/8" x .337"

4шт.

22

F64130

SWITCH

- dome lamp

1шт.

23

F64355

BRACKET

- coat hook (Prior to cab serial no. 12024517)

1шт.

24

F64352

HOOK

- coat (Prior to cab serial no. 12024517)

1шт.

25

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- flat slotted head, 1/4 NC x 1 inch (Prior to cab serial no. 12024517)

1шт.

26

86625061

NUT,1/4"-20, GB

NUT - hex, 1/4 inch NC (Prior to cab serial no. 12024517)

1шт.

27

F64386

COVER

- radio rear (Replaces F63901)

1шт.

28

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - round head self-tapping, no. 8-18 x 1/2 inch

4шт.
