(9-576) - CAB, ACOUSTICAL COVERS, CAB SERIAL NUMBER 12024460 AND AFTER

Запчасти Case IH 2090 (9-576) - CAB, ACOUSTICAL COVERS, CAB SERIAL NUMBER 12024460 AND AFTER (09) - CHASSIS/ATTACHMENTS

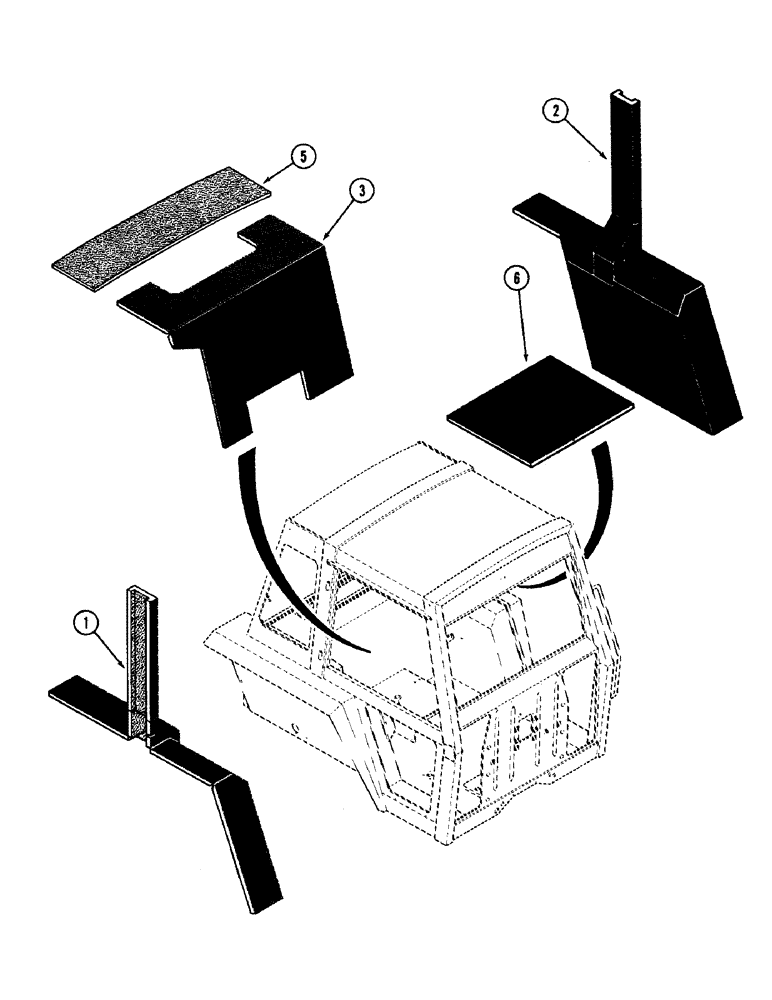

Схема запчастей Case IH 2090 - (9-576) - CAB, ACOUSTICAL COVERS, CAB SERIAL NUMBER 12024460 AND AFTER (09) - CHASSIS/ATTACHMENTS
2
1
5
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F64851

MOLDING

COVER - rear panel, right

1шт.

2

F64852

MOLDING

COVER - rear panel, left

1шт.

3

F64848

MOLDING

COVER - fuel tank

1шт.

5

F63352

FOAM

COVER - heat barrier, upper rear

1шт.

6

F64434

COVER

- headliner

1шт.
