(9-574) - CAB, ACOUSTICAL COVERS, PRIOR TO CAB SERIAL NUMBER 12024460

Запчасти Case IH 2090 (9-574) - CAB, ACOUSTICAL COVERS, PRIOR TO CAB SERIAL NUMBER 12024460 (09) - CHASSIS/ATTACHMENTS

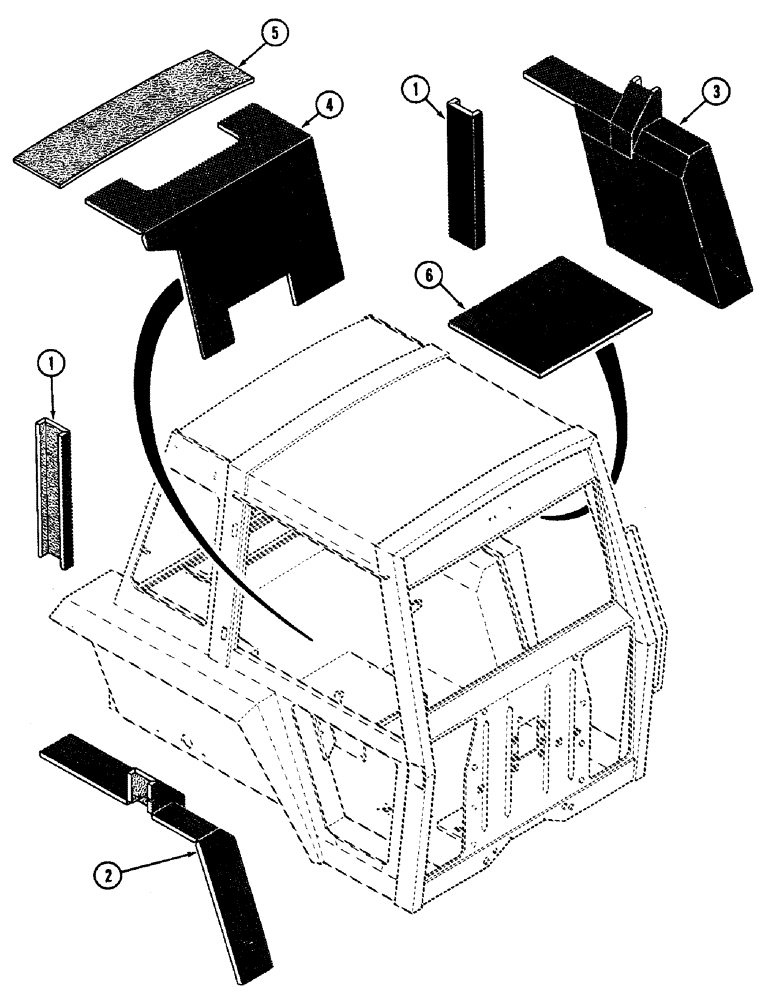

Схема запчастей Case IH 2090 - (9-574) - CAB, ACOUSTICAL COVERS, PRIOR TO CAB SERIAL NUMBER 12024460 (09) - CHASSIS/ATTACHMENTS
4
2
1
6
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F64440

COVER

- rollbar

2шт.

2

F64436

COVER

- rear panel, right

1шт.

3

F64437

COVER

- rear panel, left

1шт.

4

F64435

COVER

- fuel tank

1шт.

5

F63352

FOAM

COVER - heat barrier, upper rear

1шт.

6

F64434

COVER

- headliner

1шт.
