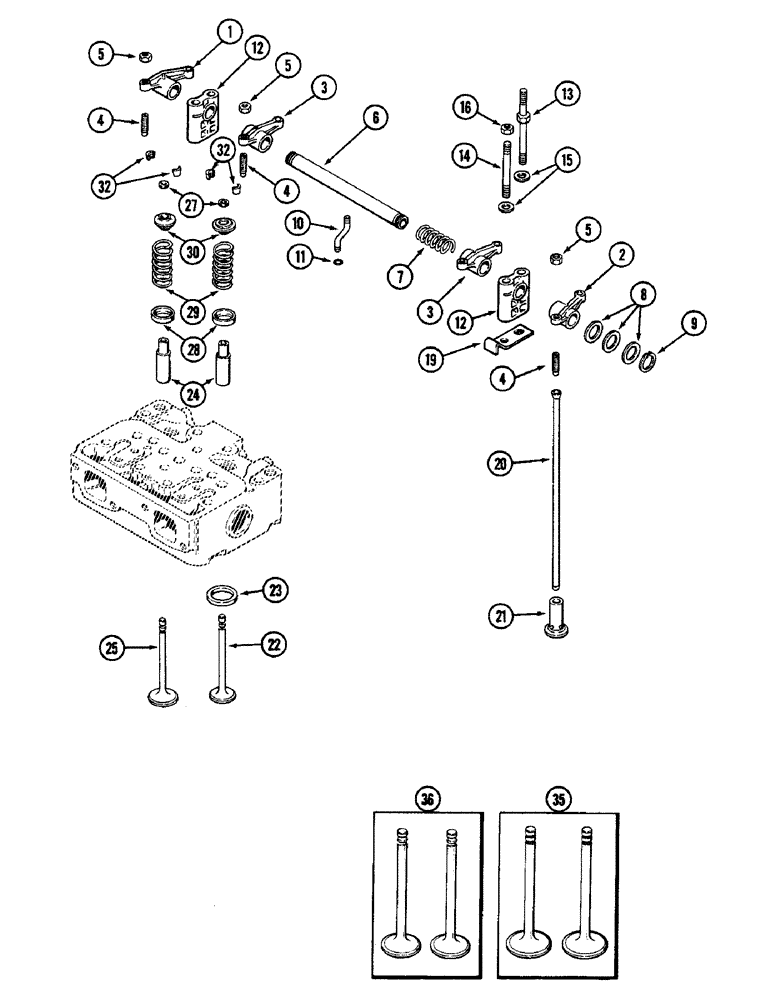

Запчасти Case IH 2090 (2-28) - VALVE MECHANISM, 504BD DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust valve (First, third and fifth cylinders), Includes: Ref. 4 & 5

3шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust valve (Second, fourth and sixth cylinders), Includes: Ref. 4 & 5

3шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valve, Includes: Ref. 4 & 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF

1шт.

6

A150545

SHAFT

- rocker arm (Replaces A57532)

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker arm shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- 3/16 x 5/16 x 1/16 inch (5 x 8 x 2 mm)

3шт.

12

A61128

BRACKET

- rocker arm shaft

6шт.

13

A67121

STUD

- special, 7/16 NC x 6-1/16 inch

6шт.

14

A58659

STUD

- 7/16 NC x 4-5/16 inch

6шт.

15

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16 inch (12 x 23 x 1 mm)

12шт.

16

25-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

6шт.

19

A157197

STRAP

- rocker arm bracket

6шт.

20

A141841

ROD

- push (Order A157328)

12шт.

21

A20865

TAPPET

LIFTER - push rod

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 35)

6шт.

23

A58619

INSERT

- exhaust valve

6шт.

24

A41783

GUIDE

- intake and exhaust valves

12шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 36)

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- intake and exhaust valve springs

12шт.

29

A66444

SPRING

- intake and exhaust valves

12шт.

30

A66336

ROTATOR

- exhaust and intake valve

12шт.

32

A27872

LOCK

- valve spring

24шт.

35

A41753

VALVE

S - exhaust (Set of 2)

3шт.

36

A41754

VALVE

S - intake (Set of 2)

3шт.
