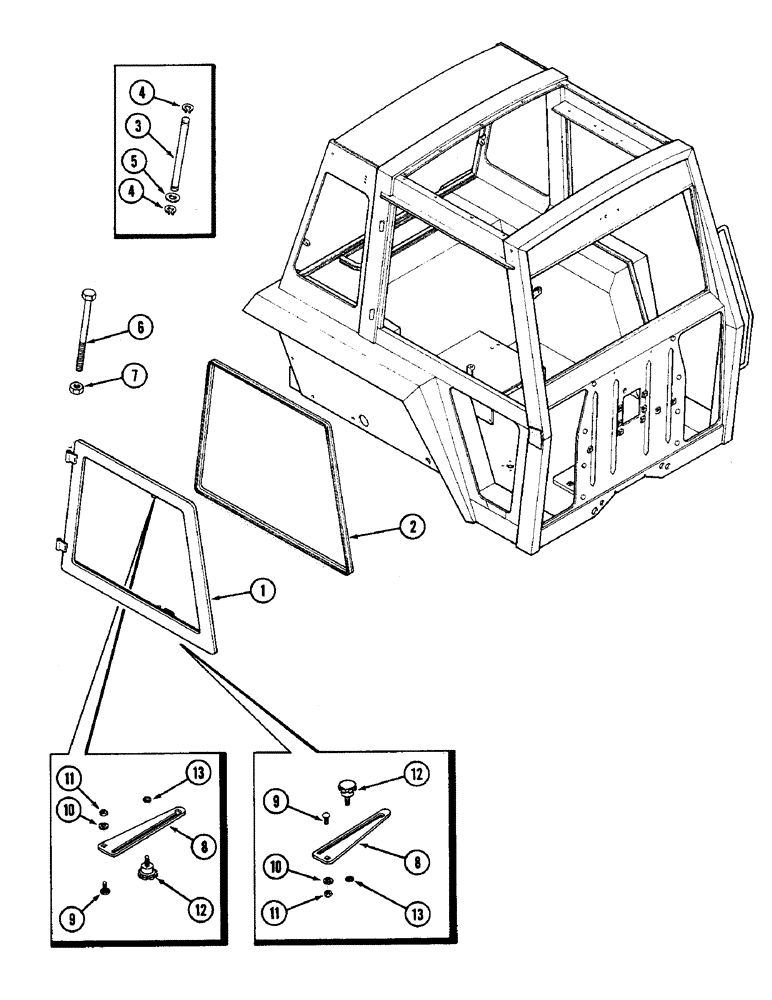

Запчасти Case IH 2090 (9-566) - CAB, SIDE WINDOW (09) - CHASSIS/ATTACHMENTS

F89399

WINDOW

ASSEMBLY - right (Includes glass), Includes: Ref. 1 & 2

1шт.

Order glass from Figure 9-568.

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - right window

1шт.

2

F64773

DOOR SEAL

- weather 134 inch long (3404 mm) (Replaces F64268)

1шт.

3

F63729

PIN

- hinge, side window (Order Ref. 6 & 7)

2шт.

4

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

5

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, hinge pin

2шт.

6

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

(Replaces F63729) Hex, 3/8"-16 x 4 1/2", G5

2шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC (Replaces F64046 and A42589)

2шт.

8

F64779

REGULATOR

ARM - regulator, window opening (Replaces F64106)

2шт.

9

111-267

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

10

195-130

WASHER - 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

4шт.

11

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

12

F64253

KNOB

- regulator

2шт.

13

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.
