Запчасти Case IH 2090 (9-564) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS

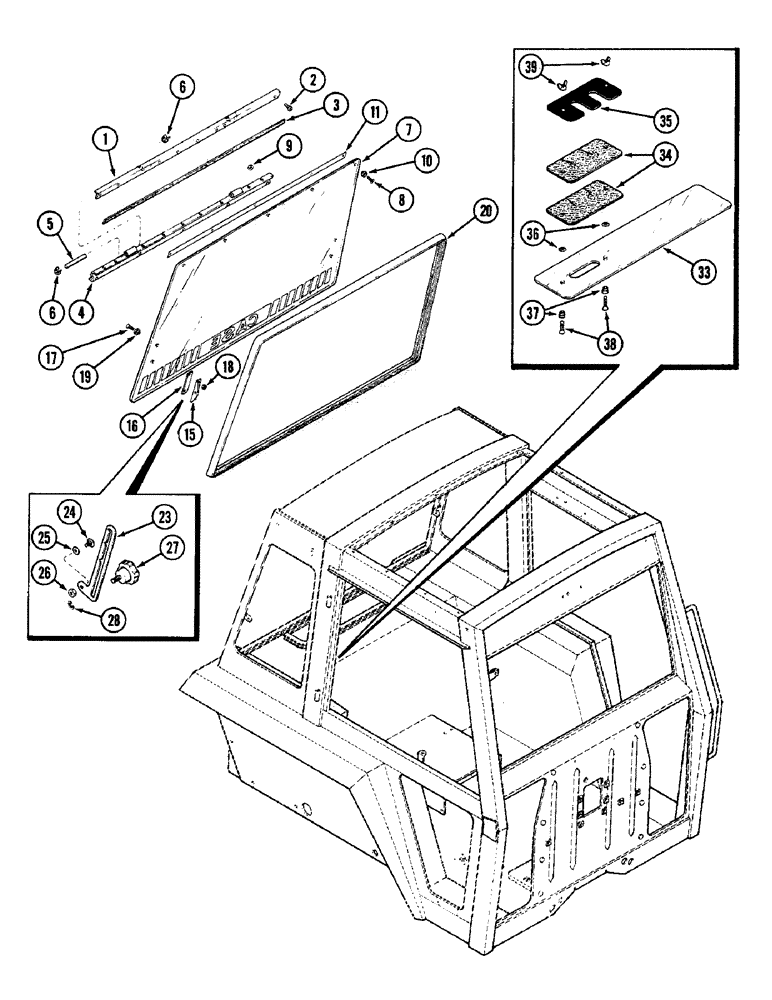

Схема запчастей Case IH 2090 - (9-564) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS
28
8
15
24
37
20
23
3
27
9
34
17
4
38
7
25
35
1
5
18
10
33
6
2
6
16
39
19
26
11
36

Артикул

Название

Примечание

Количество

1

F98235

ANGLE

- cab hinge

1шт.

2

163-37

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1", Gr 5

- pan head, no. 10-32 x 1 inch

8шт.

3

A42675

MAKING-UP

SEAL - foam (Order A42676)

1шт.

A42676

SEAL

- foam, 25 ft roll

1шт.

4

F98236

CHANNEL

HINGE - window

1шт.

5

A42524

PIN,9.53mm OD x 119.38mm L

- hinge

2шт.

6

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

7

REF

INSTRUCTION

GLASS - window, See Figure 9-564

1шт.

Ref# 7 See page 9-568 & 9-569 cwh 10/01/98

1шт.

8

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- oval head, no. 10-24 x 3/8 inch

9шт.

9

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

9шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw

9шт.

11

F64139

SPACER

-, Serial Range: hinge-glass

1шт.

15

F64138

BRACKET

- regulator arm

2шт.

16

F64140

SPACER

- bracket

8шт.

17

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- oval head, no. 10-24 x 3/8 inch

4шт.

18

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

19

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw

4шт.

20

F64499

SEAL

- window edge, 158 inch (4013 mm) long

1шт.

23

F64106

ARM

- regulator, window opening

2шт.

24

111-132

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 x 3/4 inch NC (Grade 2)

2шт.

25

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

2шт.

27

F64253

KNOB

- regulator

2шт.

28

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.

A163882

KIT - lower rear window (Machinery item), Includes: Ref. 33 - 39

1шт.

33

A163883

WINDOW

- lower rear

1шт.

34

A165354

SEAL

- lower rear window

2шт.

35

A165352

PLATE

- lower rear window

1шт.

36

A165523

FASTENER

-, Serial Range: spacer-window

2шт.

37

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- window

2шт.

38

179-159

SCREW,Cross Oval Hd, #10 - 24 x 1"

- Phillips head, no. 10-24 x 1 inch

2шт.

39

129-500

WING NUT,#10-32

NUT - wing, no. 10-24

2шт.

Выбрано товаров: 33
