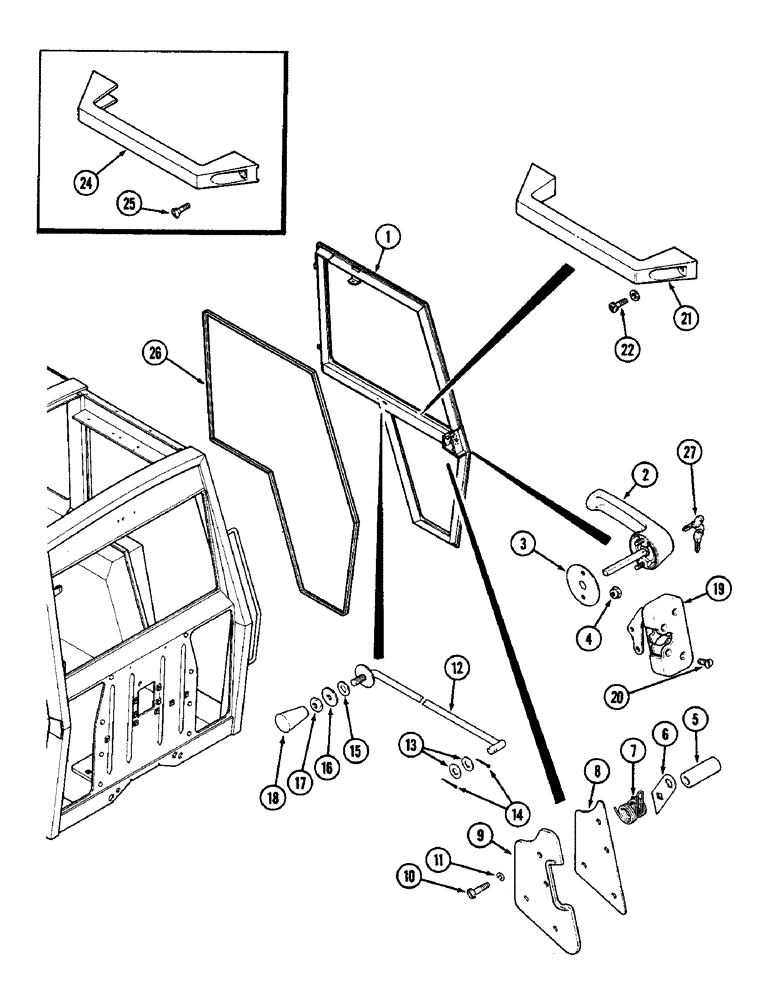

Запчасти Case IH 2090 (9-560) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

F98194

DOOR

ASSEMBLY - complete (Includes glass), Includes: Ref. 1 - 26

1шт.

Order glass from Figure 9-568.

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR

1шт.

2

F64346

HANDLE

- outer (Order F45207)

1шт.

3

F64342

GASKET,1.6mm Thk

- handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F64358

SPACER

- latch shaft, 7/16 x 3/4 x 2 inch (11 x 19 x 51 mm)

1шт.

6

F64371

ARM

- latch

1шт.

7

F64338

SPRING

- latch handle

1шт.

8

F98227

COVER

- latch, door

1шт.

9

F64357

COVER

- latch, door

1шт.

10

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- special, 1/4 NC x 1/2 inch

4шт.

11

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock special, 1/4 inch

4шт.

12

F98226

ROD

- latch pull

1шт.

13

F64384

WASHER

- 17/64 x 9/16 x 1/32 inch (7 x 14 x 1 mm)

2шт.

14

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

15

F64384

WASHER

- thrust, 17/64 x 5/8 x 1/32 inch (7 x 16 x 1 mm)

1шт.

16

F64340

WASHER

- shoulder

1шт.

17

131-1280

JAM NUT,Jam, 1/4"-20

NUT - lock, jam special

1шт.

18

F64341

KNOB

- latch rod

1шт.

19

F64296

LATCH

- door rotary

1шт.

20

182-555

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

- special, 1/4 NC x 1/4 inch

4шт.

21

F64547

HANDLE

- door, inner (Cab serial no. 12024517 and after)

1шт.

22

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- pan head, 1/4 NC x 3/4 inch (Cab serial no. 12024517 and after)

2шт.

24

F64344

HANDLE

- door, inner (Prior to cab serial no. 12024517) (Order F64547)

1шт.

25

179-157

SCREW,Cross Oval Hd, 1/4" - 20 x 3/4"

- special, 1/4 NC x 3/4 inch (Prior to cab serial no. 12024517)

2шт.

26

F64773

DOOR SEAL

STRIP - weather, door frame 181 inch long (4 597 mm)

1шт.

27

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2) (Also used as ignition key)

1шт.
