Запчасти Case IH 2090 (9-542) - DECALS, TRACTOR KIT (09) - CHASSIS/ATTACHMENTS

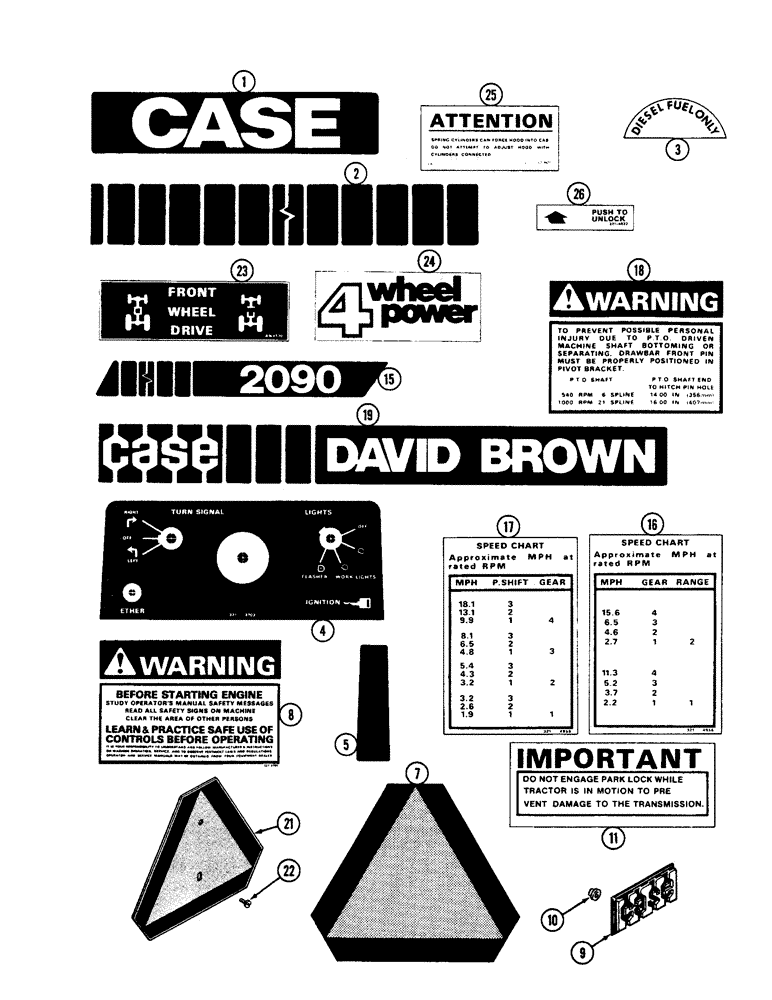

Схема запчастей Case IH 2090 - (9-542) - DECALS, TRACTOR KIT (09) - CHASSIS/ATTACHMENTS
3
11
4
26
25
5
24
22
10
15
18
8
16
17
1
23
7
21
19
9
2

Артикул

Название

Примечание

Количество

A46505

DECAL

KIT - decal, tractor

1шт.

1

321-4911

DECAL

- Case (Right and left decal panel)

2шт.

2

321-4910

DECAL

- with stripes (Right and left decal panel)

2шт.

3

321-4493

DECAL

- diesel fuel (On filler cap)

1шт.

4

321-5889

DECAL

- control panel (On steering column)

1шт.

5

321-4142

DECAL

- sight line (On hood)

1шт.

7

321-4311

DECAL

- slow moving vehicle (On fuel tank) (Prior to tractor P.I.N. 9913388)

1шт.

8

321-3705

DECAL

- starting instructions

1шт.

9

321-4739

EMBLEM

MEDALLION - front, Case mark

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self thread, 1/4 inch (Medallion to grille)

2шт.

11

321-5264

DECAL

- park lock

1шт.

15

321-4912

DECAL

- 2090 (Right fender panel)

1шт.

15

321-4913

DECAL

- 2090 (Left fender panel)

1шт.

16

321-4956

DECAL

- speed chart (Mechanical shift)

1шт.

17

321-4958

DECAL

- speed chart (Power shift)

1шт.

18

321-5459

DECAL

- warning, hitch pin (Right rear platform skirt)

1шт.

19

321-5266

DECAL

- Case - David Brown (Export only)

1шт.

21

A163604

DECAL

EMBLEM - SMV (Order D123347) (Tractor P.I.N. 9913388 and after)

1шт.

22

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- Phillips pan head, 1/4-20 x 3/8 inch

2шт.

23

A164570

DECAL

- MFD control

1шт.

24

A165370

DECAL - 4 wheel power (MFD tractor)

2шт.

25

321-4621

DECAL

- tilt hood adjust

2шт.

26

321-4622

DECAL

- hood unlatch instruction

1шт.

A46520

DECAL

KIT - decal, French language

1шт.

Kit also includes items listed on Figure 9-544.

1шт.

3

321-5793

DECAL

- diesel fuel, French language

1шт.

8

321-6646

DECAL

- starting instructions, French language

1шт.

11

321-5789

DECAL - park lock engagement, French language

1шт.

25

321-5624

DECAL - tilt hood adjust, French language

2шт.

26

321-5625

DECAL

- hood unlatch, French language

1шт.

321-6206

DECAL - steering console (Not used this application), French language

1шт.

321-5792

DECAL - 12 speed chart (Not used this application), French language

1шт.

321-5627

DECAL - 12 speed chart (Not used this application), French language

1шт.

321-5626

DECAL - 8 speed chart (Not used this application), French language

1шт.

321-5861

DECAL - fuse location (On firewall), French language

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover), French language

1шт.

Выбрано товаров: 36
