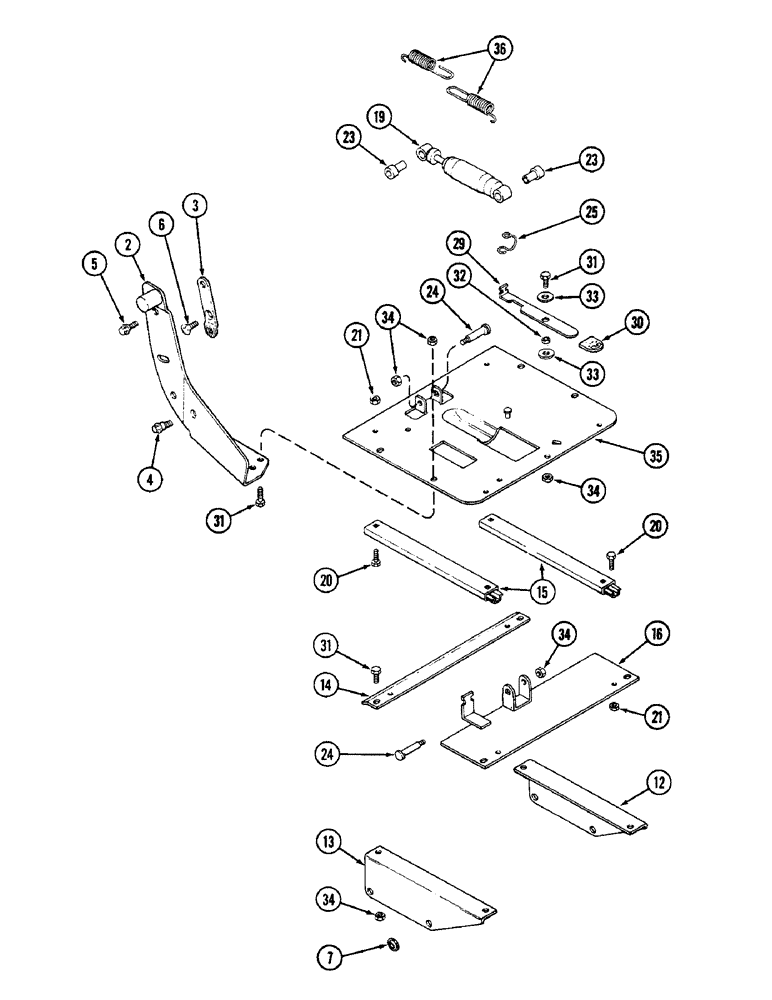

Запчасти Case IH 2090 (9-534) - SEAT, ISOLATOR KIT (09) - CHASSIS/ATTACHMENTS

A169729

ISOLATOR

KIT - seat isolator

1шт.

2

A48344

BRACKET

BACKREST - armrest, right

1шт.

2

A48345

BRACKET

- armrest, left

1шт.

3

A48343

LINK

- backrest tilt

2шт.

4

A47781

BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5

BOLT - seat tilt

2шт.

5

A48346

BOLT

- hex special, 3/8 NC x 1-1/8 inch

2шт.

6

187-1270

SELF-TAP SCREW,Flat, 3/8" - 18 x 1"

BOLT - Phillips head, 3/8 NC x 1 inch

2шт.

7

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

12

A48349

ADAPTER

- slide, left

1шт.

13

A48350

ADAPTER

- slide, right

1шт.

14

A48357

BAR

- slide adapter

1шт.

15

A48358

SLIDE

ASSEMBLY - isolator (Order A49512)

1шт.

16

A48359

BRACKET

- lower

1шт.

19

A48355

SHOCK ABSORBER

- isolator

1шт.

20

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - hex, 5/16 NC x 7/8 inch

8шт.

21

131-464

LOCK NUT,5/16"-18, G8

NUT - hex, 5/16 inch NC

8шт.

23

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

24

A45056

STEP BOLT

BOLT - shock absorber shoulder

2шт.

25

A48351

SPRING

- isolator

1шт.

29

A48352

LATCH

- isolator

1шт.

30

A48353

CAP

- isolator latch

1шт.

31

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

32

A48224

BUSHING

SPACER - latch

1шт.

33

A45519

WASHER

- 33/64 x 1-1/8 x 1/16 inch (13 x 29 x 2 mm) (Order A45110 and A45116)

2шт.

34

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, 3/8 inch NC

8шт.

35

A48354

PLATE

- top

1шт.

36

A48356

SPRING

- shock absorber

1шт.
