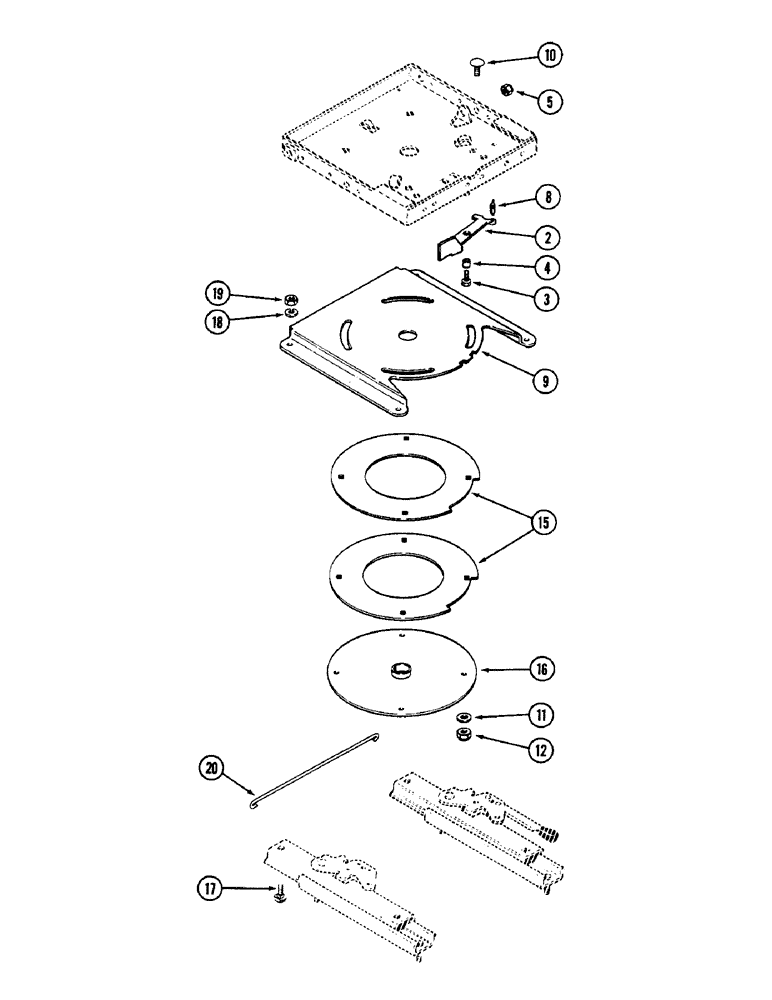

Запчасти Case IH 2090 (9-532) - SEAT, SEAT SWIVEL KIT (09) - CHASSIS/ATTACHMENTS

A165295

KIT - seat swivel, (Machinery item), Includes: Ref. 2 - 20

1шт.

2

A48225

HANDLE

- swivel

1шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

4

A48224

BUSHING

SPACER - swivel handle

1шт.

5

129-749

NUT

- weld, 3/8 inch NC

1шт.

8

A45521

SPRING

- swivel handle

1шт.

9

A47378

PLATE

- swivel handle

1шт.

10

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

4шт.

11

195-525

WASHER,3/8", SAE

- 13/32 x 3/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

12

131-52

NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

4шт.

15

A45514

DISC

BEARING - swivel plate

2шт.

16

A45526

PLATE

- bottom swivel

1шт.

17

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

19

129-770

NUT,3/8"-16, G5

- hex, 5/16 inch NC

4шт.

20

A45524

ROD

- handle connecting

1шт.
