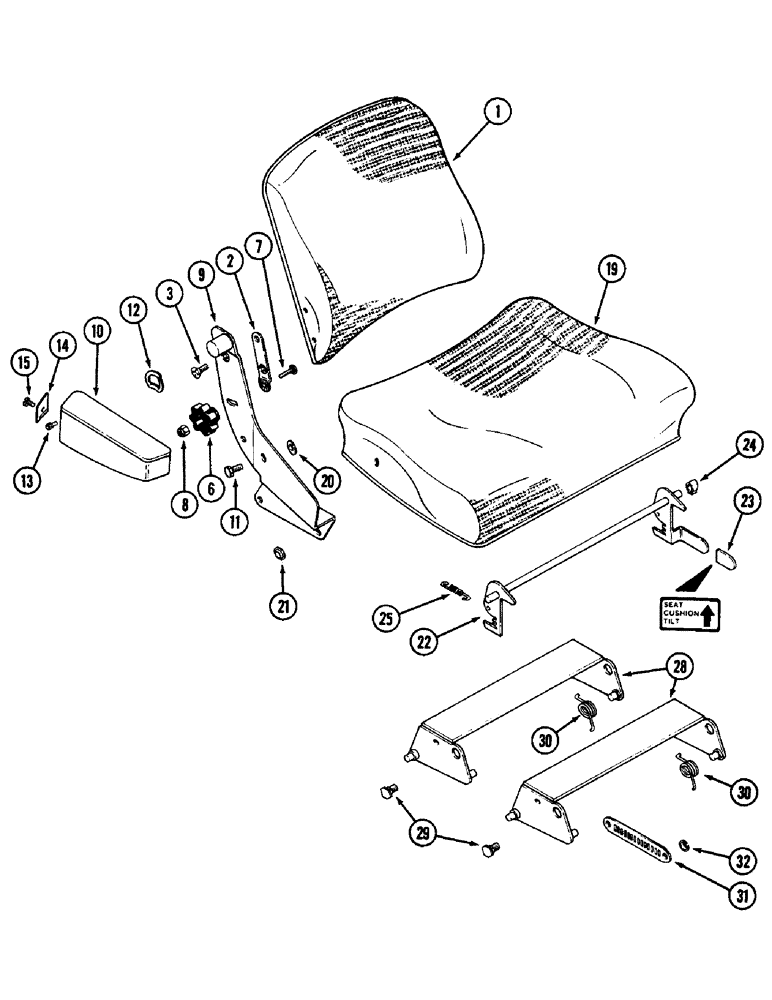

Запчасти Case IH 2090 (9-528) - SEAT, CLOTH, WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS

A163314

SEAT

AND SUSPENSION ASSEMBLY - operator, Includes: Ref. 1 - 32 and 1 - 53 on Figure 9-530

1шт.

A48184

BACKREST

ASSEMBLY - seat, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest (Order A48184)

1шт.

2

A47342

LINK

- backrest tilt

2шт.

3

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat head, 3/8 NC x 1 inch

2шт.

6

A45487

BUTTON

KNOB - tilt backrest

2шт.

7

A45527

CARRIAGE BOLT

- round head square neck, 3/8 NC x 1-1/2 inch

2шт.

8

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex jam lock, 3/8 inch NC

2шт.

9

A45529

BRACKET

- armrest, right (Shown)

1шт.

9

A45528

SUPPORT

BRACKET - armrest, left

1шт.

10

A45489

ARMREST

- seat, right (Shown)

1шт.

10

A45488

ARMREST

- seat, left

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

12

A47352

WASHER

- wave

4шт.

13

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - armrest, socket head, 1/4 NC x 1/2 inch

2шт.

14

A45584

COVER

PLATE - armrest, right (Shown)

1шт.

14

A45583

PLATE

COVER PLATE - armrest, left

1шт.

15

187-330

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - pan head, self-tapping, no. 10 x 5/8 inch

2шт.

19

A48183

SEAT

CUSHION - seat

1шт.

20

A45110

WASHER

- seat retainer, fiber

2шт.

21

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, , Seat fastener Push, 1/2"

4шт.

22

A47346

LEVER

- seat assembly tilt

1шт.

23

A47347

CAP

- tilt lever

1шт.

24

A45482

BUSHING

SPACER - tilt lever shaft

2шт.

25

A45471

- tilt lever shaft tension

2шт.

28

A47379

LINK

- seat mounting cross

2шт.

29

A45473

STEP BOLT

BOLT - hex shoulder, 1/2 NC x 3/4 inch

4шт.

30

A47384

SPRING

- torsion

2шт.

31

A47383

LINK

- connecting

2шт.

32

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, , Connecting link to cross link Push, 1/2"

4шт.
