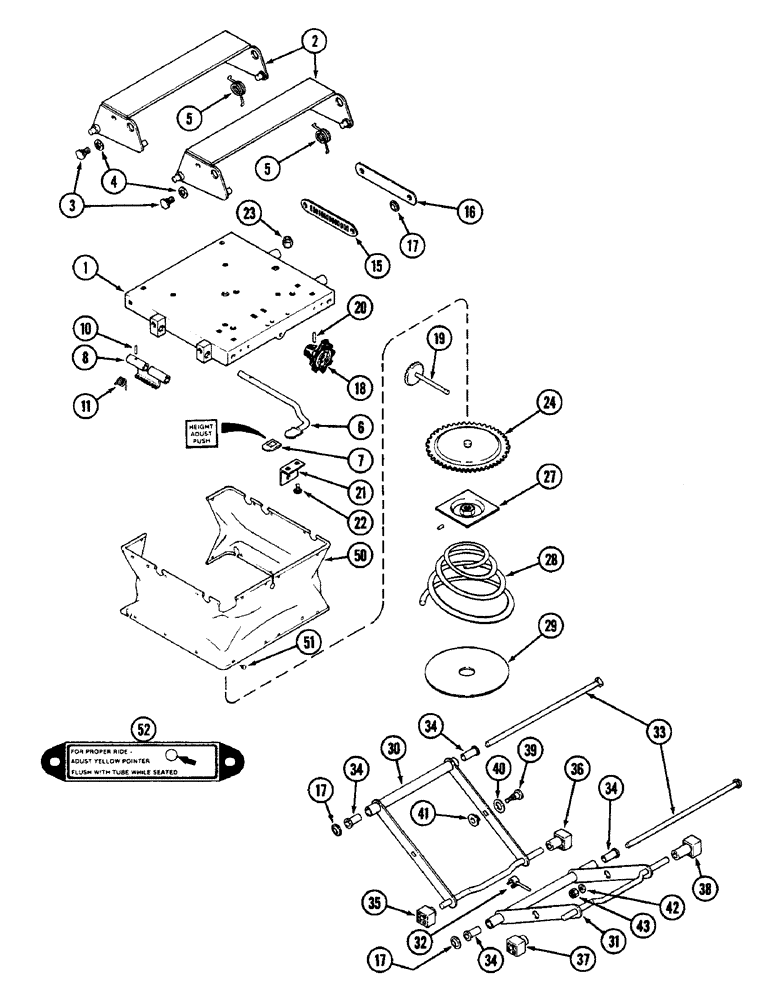

Запчасти Case IH 2090 (9-518) - SWIVEL SEAT ASSEMBLY, SUSPENSION PARTS, EARLY PRODUCTION (CONTD) (09) - CHASSIS/ATTACHMENTS

A161408

SEAT

AND SUSPENSION ASSEMBLY, Includes: Ref. 1 - 52, 1 - 54 on Figure 9-516, 1 - 52 on Figure 9-520 and 1 - 35 on Figure 9-522

1шт.

1

A47362

PLATE

- upper, suspension assembly (Order 1-A47761, 1-A47762 and 4-131-542)

1шт.

2

A47379

LINK

- cross, seat mounting

2шт.

3

A45473

STEP BOLT

BOLT - shoulders, 1/2 inch NC

4шт.

4

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

5

A47384

SPRING

- torsion

2шт.

6

A47380

LEVER

- height adjusting

1шт.

7

A47385

CAP

- lever (Order A47767)

1шт.

8

A47381

LATCH

- height adjusting

1шт.

10

138-2070

PIN,5/32" x 3/4", Coiled

1шт.

11

A47382

SPRING

- latch return

1шт.

15

A47383

LINK

- notched, right side

1шт.

16

A45474

LINK

- plain, left side (Order D82860)

1шт.

17

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

6шт.

18

A47360

KNOB

ASSEMBLY - weight adjusting (Order A47763)

1шт.

19

A45513

GEAR

- weight adjusting spinner

1шт.

20

138-2024

PIN,5/32" x 1", Coiled

2шт.

21

A45531

BRACKET

- shaft

1шт.

22

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - round head square neck, 1/4 NC x 1/2 inch (Grade 8)

2шт.

23

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

24

A45505

GEAR

- weight adjusting

1шт.

27

A45504

SPRING WASHER

- spring

1шт.

28

A45497

SPRING

- conical, weight suspension

1шт.

29

A45530

PAD

- spring

1шт.

30

A45533

TUBE

ARM - outer, weight suspension (Order A47759)

1шт.

31

A45532

TUBE

ARM - inner, weight suspension (Order A47759)

1шт.

32

A47070

INDICATOR

- ride adjustment

1шт.

33

A45057

SHAFT

- bearing

2шт.

34

A45496

TUBE

- bearing (Order A47760)

4шт.

35

A45512

BLOCK

- slider, 1-3/16 inch (30 mm)

1шт.

36

A45516

BLOCK

- slider, 2-3/16 inch (56 mm)

1шт.

37

A45515

BLOCK

- slider, 1-9/16 inch (40 mm)

1шт.

38

A45517

BLOCK

- slider, 2-9/16 inch (65 mm)

1шт.

39

A45055

BOLT

- pivot, 3/8 inch NC

2шт.

40

A45519

WASHER

- pivot bolt (Order A45110 and A45116)

2шт.

41

A45498

BUSHING

BEARING - pivot

2шт.

42

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

2шт.

43

131-52

NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

50

A47359

BOOT

COVER - suspension

1шт.

51

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

- cover fastener, 1/4 inch

23шт.

52

A47361

DECAL

- ride adjusting (Order A47778)

1шт.
