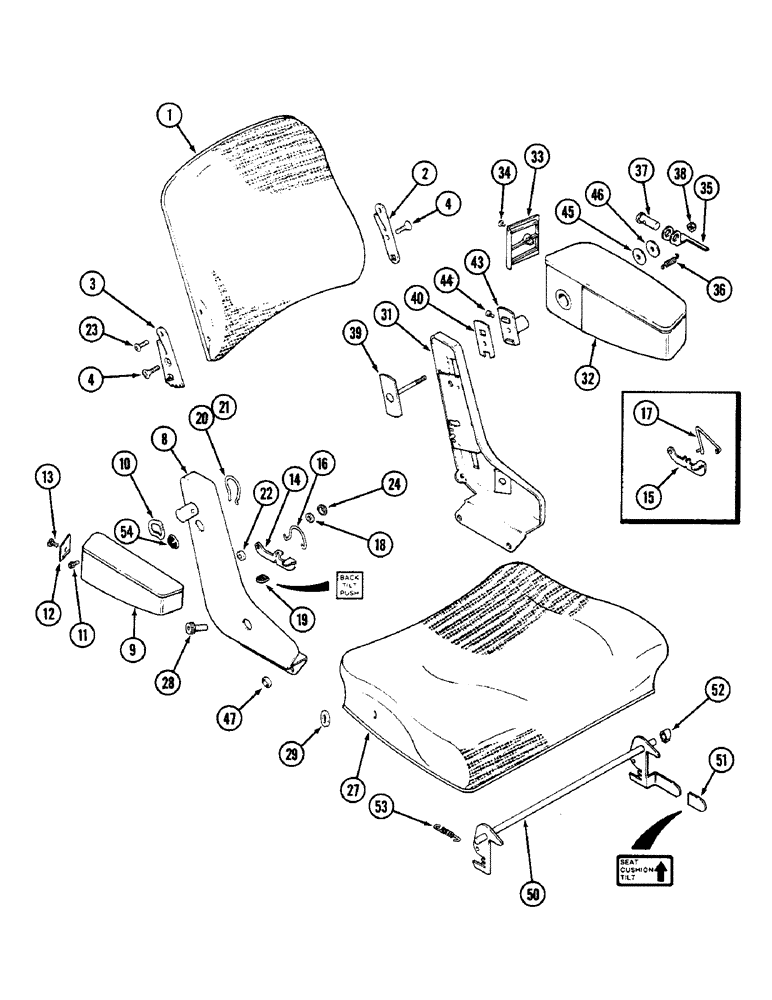

Запчасти Case IH 2090 (9-516) - SWIVEL SEAT ASSEMBLY, ARMS AND BACKREST (09) - CHASSIS/ATTACHMENTS

A161408

SEAT

AND SUSPENSION ASSEMBLY - (Order A163314), Includes: Ref. 1 - 54, 1 - 52 on Figure 9-518, 1 - 52 on Figure 9-520 and 1 - 35 on Figure 9-522

1шт.

A47348

BACKREST

ASSEMBLY, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

2

A47365

LINK

- tilt, left

1шт.

3

A47364

LINK

- tilt, right

1шт.

4

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat head Phillips, 3/8 NC x 1 inch

2шт.

8

A47351

BRACKET

- right armrest (Early production)

1шт.

8

A47628

BRACKET

- right armrest (Late production), Includes: Ref. 14 & 16

1шт.

9

A45489

ARMREST

- right

1шт.

10

A47352

WASHER

- wave, right

1шт.

11

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - armrest, right, socket head, 1/4 NC x 1/2 inch

1шт.

12

A45584

COVER

PLATE - right armrest

1шт.

13

187-330

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - pan head self-tapping, no. 10 x 5/8 inch

1шт.

14

A47630

LATCH

- tilt, backrest (Late production)

1шт.

15

A47356

LATCH

- tilt, backrest (Early production) (Order Ref. 14 & 16)

1шт.

16

A47631

SPRING

- tilt latch, right (Late production)

1шт.

17

A47357

SPRING

- tilt latch, right (Early production)

1шт.

18

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

1шт.

19

A47702

CAP

- tilt latch, right (Replaces A47358)

1шт.

20

A47353

SPRING

- tilt link, left

1шт.

21

A47354

SPRING

- tilt link, right

1шт.

22

A47355

BUSHING

SPACER - tilt link, right and left

2шт.

23

164-551

HEX SOC SCREW,Btn Hd, 3/8" - 16 x 1"

SCREW - butt head, 3/8 NC x 1 inch

2шт.

24

131-432

LOCK NUT,Push, 5/16"

NUT - push, 5/16 inch

2шт.

27

A47349

SEAT

CUSHION - seat

1шт.

28

A47781

BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5

- socket head, 1/2 NC x 1-1/4 inch

2шт.

29

A45110

WASHER

- fiber, seat retainer

2шт.

A47350

BRACKET ASEMBLY - left armrest, Includes: Ref. 31 - 46

1шт.

31

A47780

BRACKET

- left armrest (Replaces A47366)

1шт.

32

A47373

ARMREST

- left

1шт.

33

A47377

COVER

PLATE - left armrest

1шт.

34

187-333

SCREW,Slotted Pan Hd, #10 x 1"

- pan head self-tapping, no. 10 x 1 inch

1шт.

35

A47374

HANDLE

- adjusting cam release

1шт.

36

A47375

SPRING

- guide

1шт.

37

A47376

PIN

- handle pivot

1шт.

38

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex lock, 3/8 inch NC

1шт.

39

A47367

PLATE

- handle back up

1шт.

40

A47368

BUSHING

SPACER - plate

1шт.

43

A47369

COLLAR

BOSS - handle pivot

1шт.

44

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - pivot lock (Replaces A47370)

2шт.

45

A47371

WASHER

- fiber

1шт.

46

A47372

WASHER

- hardened steel

1шт.

47

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Seat to suspension) Push, 1/2"

4шт.

50

A47346

LEVER

- tilt, seat assembly

1шт.

51

A47347

CAP

- tilt lever

1шт.

52

A45482

BUSHING

SPACER - tilt lever shaft

2шт.

53

NLS

NO LONGER SERVICED

- tension, tilt lever shaft

2шт.

54

353-252

PLUG,1"

- cap, 1 inch hole

2шт.
